Bike-Sharing Dataset

The Bike-Sharing Dataset contains the hourly and daily count of rental bikes between years 2011 and 2012 in Capital bikeshare system with the corresponding weather and seasonal information. The dataset contains 14 features with information about the day-type, e.g., month, hour, which day of the week, whether it is working-day, and the weather conditions, e.g., temperature, humidity, wind speed, etc. The target variable is the number of bike rentals per hour. The dataset contains 17,379 instances.

import effector
import numpy as np
import tensorflow as tf
from tensorflow import keras
import random

np.random.seed(42)
tf.random.set_seed(42)
random.seed(42)

/Users/dimitriskyriakopoulos/Documents/ath/Effector/Code/eff-env/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Preprocess the data

from ucimlrepo import fetch_ucirepo

bike_sharing_dataset = fetch_ucirepo(id=275)
X = bike_sharing_dataset.data.features
y = bike_sharing_dataset.data.targets

X = X.drop(["dteday", "atemp"], axis=1)

X.head()
season yr mnth hr holiday weekday workingday weathersit temp hum windspeed
0 1 0 1 0 0 6 0 1 0.24 0.81 0.0
1 1 0 1 1 0 6 0 1 0.22 0.80 0.0
2 1 0 1 2 0 6 0 1 0.22 0.80 0.0
3 1 0 1 3 0 6 0 1 0.24 0.75 0.0
4 1 0 1 4 0 6 0 1 0.24 0.75 0.0
print("Design matrix shape: {}".format(X.shape))
print("---------------------------------")
for col_name in X.columns:
    print("Feature: {:15}, unique: {:4d}, Mean: {:6.2f}, Std: {:6.2f}, Min: {:6.2f}, Max: {:6.2f}".format(col_name, len(X[col_name].unique()), X[col_name].mean(), X[col_name].std(), X[col_name].min(), X[col_name].max()))

print("\nTarget shape: {}".format(y.shape))
print("---------------------------------")
for col_name in y.columns:
    print("Target: {:15}, unique: {:4d}, Mean: {:6.2f}, Std: {:6.2f}, Min: {:6.2f}, Max: {:6.2f}".format(col_name, len(y[col_name].unique()), y[col_name].mean(), y[col_name].std(), y[col_name].min(), y[col_name].max()))

Design matrix shape: (17379, 11)
---------------------------------
Feature: season         , unique:    4, Mean:   2.50, Std:   1.11, Min:   1.00, Max:   4.00
Feature: yr             , unique:    2, Mean:   0.50, Std:   0.50, Min:   0.00, Max:   1.00
Feature: mnth           , unique:   12, Mean:   6.54, Std:   3.44, Min:   1.00, Max:  12.00
Feature: hr             , unique:   24, Mean:  11.55, Std:   6.91, Min:   0.00, Max:  23.00
Feature: holiday        , unique:    2, Mean:   0.03, Std:   0.17, Min:   0.00, Max:   1.00
Feature: weekday        , unique:    7, Mean:   3.00, Std:   2.01, Min:   0.00, Max:   6.00
Feature: workingday     , unique:    2, Mean:   0.68, Std:   0.47, Min:   0.00, Max:   1.00
Feature: weathersit     , unique:    4, Mean:   1.43, Std:   0.64, Min:   1.00, Max:   4.00
Feature: temp           , unique:   50, Mean:   0.50, Std:   0.19, Min:   0.02, Max:   1.00
Feature: hum            , unique:   89, Mean:   0.63, Std:   0.19, Min:   0.00, Max:   1.00
Feature: windspeed      , unique:   30, Mean:   0.19, Std:   0.12, Min:   0.00, Max:   0.85

Target shape: (17379, 1)
---------------------------------
Target: cnt            , unique:  869, Mean: 189.46, Std: 181.39, Min:   1.00, Max: 977.00

def preprocess(X, y):
    # Standarize X
    X_df = X
    x_mean = X_df.mean()
    x_std = X_df.std()
    X_df = (X_df - X_df.mean()) / X_df.std()

    # Standarize Y
    Y_df = y
    y_mean = Y_df.mean()
    y_std = Y_df.std()
    Y_df = (Y_df - Y_df.mean()) / Y_df.std()
    return X_df, Y_df, x_mean, x_std, y_mean, y_std

# shuffle and standarize all features
X_df, Y_df, x_mean, x_std, y_mean, y_std = preprocess(X, y)

def split(X_df, Y_df):
    # shuffle indices
    indices = X_df.index.tolist()
    np.random.shuffle(indices)

    # data split
    train_size = int(0.8 * len(X_df))

    X_train = X_df.iloc[indices[:train_size]]
    Y_train = Y_df.iloc[indices[:train_size]]
    X_test = X_df.iloc[indices[train_size:]]
    Y_test = Y_df.iloc[indices[train_size:]]

    return X_train, Y_train, X_test, Y_test

# train/test split
X_train, Y_train, X_test, Y_test = split(X_df, Y_df)

Fit a Neural Network

# Train - Evaluate - Explain a neural network
model = keras.Sequential([
    keras.layers.Dense(1024, activation="relu"),
    keras.layers.Dense(512, activation="relu"),
    keras.layers.Dense(256, activation="relu"),
    keras.layers.Dense(1)
])

optimizer = keras.optimizers.Adam(learning_rate=0.001)
model.compile(optimizer=optimizer, loss="mse", metrics=["mae", keras.metrics.RootMeanSquaredError()])
model.fit(X_train, Y_train, batch_size=512, epochs=20, verbose=1)
model.evaluate(X_train, Y_train, verbose=1)
model.evaluate(X_test, Y_test, verbose=1)

Epoch 1/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 1s 13ms/step - loss: 0.6231 - mae: 0.5745 - root_mean_squared_error: 0.7853
Epoch 2/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step - loss: 0.3871 - mae: 0.4508 - root_mean_squared_error: 0.6220
Epoch 3/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step - loss: 0.2985 - mae: 0.3857 - root_mean_squared_error: 0.5462
Epoch 4/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step - loss: 0.2252 - mae: 0.3337 - root_mean_squared_error: 0.4744
Epoch 5/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step - loss: 0.1643 - mae: 0.2857 - root_mean_squared_error: 0.4052
Epoch 6/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step - loss: 0.1189 - mae: 0.2379 - root_mean_squared_error: 0.3446
Epoch 7/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 14ms/step - loss: 0.0899 - mae: 0.2070 - root_mean_squared_error: 0.2997
Epoch 8/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0741 - mae: 0.1879 - root_mean_squared_error: 0.2722
Epoch 9/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0655 - mae: 0.1765 - root_mean_squared_error: 0.2560
Epoch 10/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0585 - mae: 0.1666 - root_mean_squared_error: 0.2419
Epoch 11/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0540 - mae: 0.1598 - root_mean_squared_error: 0.2323
Epoch 12/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0513 - mae: 0.1553 - root_mean_squared_error: 0.2263
Epoch 13/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0490 - mae: 0.1515 - root_mean_squared_error: 0.2214
Epoch 14/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0465 - mae: 0.1476 - root_mean_squared_error: 0.2156
Epoch 15/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0454 - mae: 0.1454 - root_mean_squared_error: 0.2131
Epoch 16/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0434 - mae: 0.1421 - root_mean_squared_error: 0.2083
Epoch 17/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0421 - mae: 0.1394 - root_mean_squared_error: 0.2052
Epoch 18/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0422 - mae: 0.1405 - root_mean_squared_error: 0.2054
Epoch 19/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 15ms/step - loss: 0.0442 - mae: 0.1455 - root_mean_squared_error: 0.2101
Epoch 20/20
28/28 ━━━━━━━━━━━━━━━━━━━━ 0s 16ms/step - loss: 0.0486 - mae: 0.1545 - root_mean_squared_error: 0.2203
435/435 ━━━━━━━━━━━━━━━━━━━━ 1s 1ms/step - loss: 0.0559 - mae: 0.1830 - root_mean_squared_error: 0.2363
109/109 ━━━━━━━━━━━━━━━━━━━━ 0s 1ms/step - loss: 0.0838 - mae: 0.2117 - root_mean_squared_error: 0.2879





[0.0765402615070343, 0.2062656432390213, 0.2766591012477875]

We train a deep fully-connected Neural Network with 3 hidden layers for \(20\) epochs. The model achieves a root mean squared error on the test of about \(0.24\) units, that corresponds to approximately \(0.26 * 181 = 47\) counts.

Explain

We will focus on the feature temp (temperature) because its global effect is quite heterogeneous and the heterogeneity can be further explained using regional effects.

def model_jac(x):
    x_tensor = tf.convert_to_tensor(x, dtype=tf.float32)
    with tf.GradientTape() as t:
        t.watch(x_tensor)
        pred = model(x_tensor)
        grads = t.gradient(pred, x_tensor)
    return grads.numpy()

def model_forward(x):
    return model(x).numpy().squeeze()

scale_y = {"mean": y_mean.iloc[0], "std": y_std.iloc[0]}
scale_x_list =[{"mean": x_mean.iloc[i], "std": x_std.iloc[i]} for i in range(len(x_mean))]
scale_x = scale_x_list[3]
feature_names = X_df.columns.to_list()
target_name = "bike-rentals"
y_limits=[-200, 800]
dy_limits = [-300, 300]

scale_x_list[8]["mean"] += 8
scale_x_list[8]["std"] *= 47

scale_x_list[9]["std"] *= 100
scale_x_list[10]["std"] *= 67

Global Effect

Overview of All Features

We start by examining all relevant features. Feature effect methods are generally more meaningful for numerical features. To compare effects across features more easily, we standardize the y_limits.

Relevant features:

  • month
  • hr
  • weekday
  • workingday
  • temp
  • humidity
  • windspeed

We observe that features: hour, temperature and humidity have an intersting structure. Out of them hour has by far the most influence on the output, so it makes sensce to fucse on it further.

pdp = effector.PDP(data=X_train.to_numpy(), model=model_forward, feature_names=feature_names, target_name=target_name, nof_instances=2000)

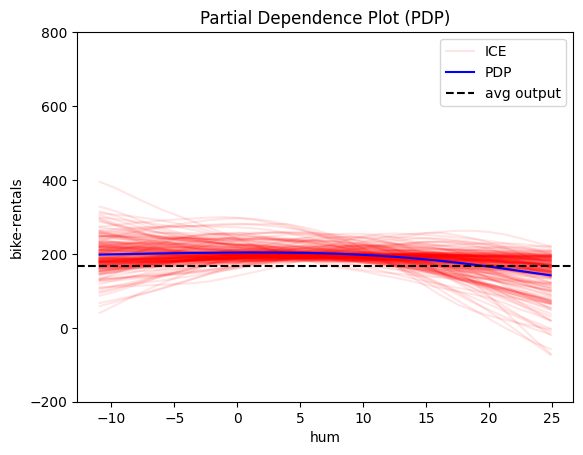

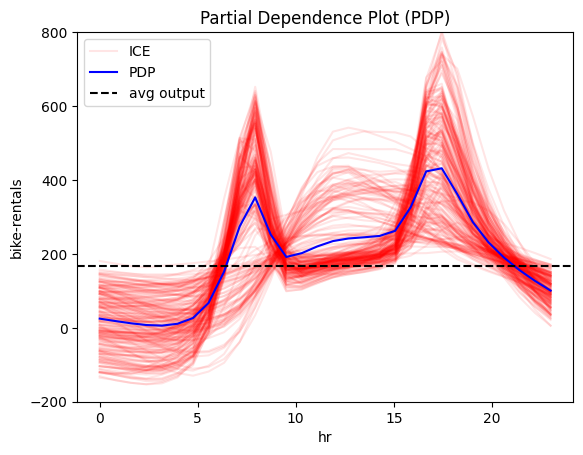

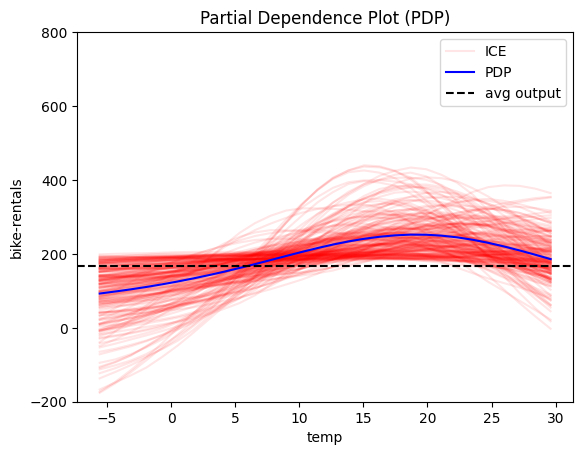

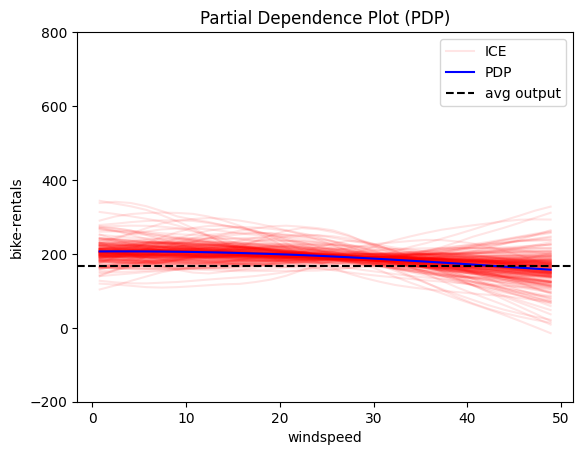

for i in [2, 3, 8, 9, 10]:
    pdp.plot(feature=i, centering=True, scale_x=scale_x, scale_y=scale_y, show_avg_output=True, nof_ice=200, y_limits=y_limits)

png

png

png

png

png

PDP

pdp = effector.PDP(data=X_train.to_numpy(), model=model_forward, feature_names=feature_names, target_name=target_name, nof_instances=5000)
pdp.plot(feature=3, centering=True, scale_x=scale_x, scale_y=scale_y, show_avg_output=True, nof_ice=200)

png

RHALE

rhale = effector.RHALE(data=X_train.to_numpy(), model=model_forward, model_jac=model_jac, feature_names=feature_names, target_name=target_name)

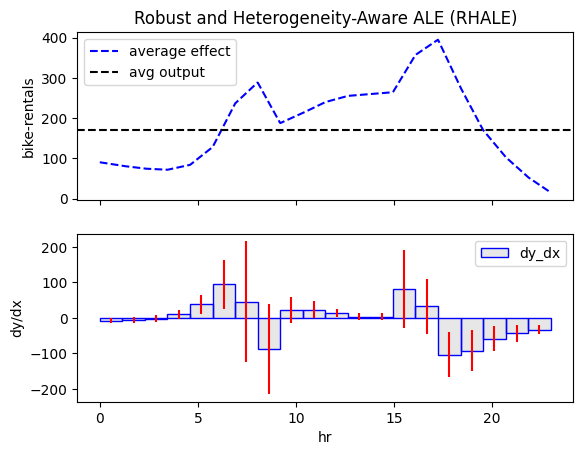

rhale.plot(feature=3, heterogeneity="std", centering=True, scale_x=scale_x, scale_y=scale_y, show_avg_output=True)

png

shap_dp = effector.ShapDP(data=X_train.to_numpy(), model=model_forward, feature_names=feature_names, target_name=target_name, nof_instances=500)
shap_dp.plot(feature=3, centering=True, scale_x=scale_x, scale_y=scale_y, show_avg_output=True)

PermutationExplainer explainer: 501it [02:55,  2.76it/s]

png

Conclusion

All methods agree that hour affects bike-rentals with two peaks, around 8:00 and 17:00, likely reflecting commute hours. However, the effect varies significantly, so regional effects may help in understanding the origin of this heterogeneity.

Regional Effect

RegionalPDP

regional_pdp = effector.RegionalPDP(data=X_train.to_numpy(), model=model_forward, feature_names=feature_names, nof_instances=5_000)
regional_pdp.summary(features=3, scale_x_list=scale_x_list)

100%|██████████| 1/1 [00:02<00:00,  2.72s/it]



Feature 3 - Full partition tree:
🌳 Full Tree Structure:
───────────────────────
hr 🔹 [id: 0 | heter: 0.24 | inst: 5000 | w: 1.00]
    workingday = 0.00 🔹 [id: 1 | heter: 0.12 | inst: 1584 | w: 0.32]
        temp ≤ 6.81 🔹 [id: 2 | heter: 0.06 | inst: 768 | w: 0.15]
        temp > 6.81 🔹 [id: 3 | heter: 0.08 | inst: 816 | w: 0.16]
    workingday ≠ 0.00 🔹 [id: 4 | heter: 0.12 | inst: 3416 | w: 0.68]
        temp ≤ 6.81 🔹 [id: 5 | heter: 0.08 | inst: 1511 | w: 0.30]
        temp > 6.81 🔹 [id: 6 | heter: 0.09 | inst: 1905 | w: 0.38]
--------------------------------------------------
Feature 3 - Statistics per tree level:
🌳 Tree Summary:
─────────────────
Level 0🔹heter: 0.24
    Level 1🔹heter: 0.12 | 🔻0.12 (48.49%)
        Level 2🔹heter: 0.08 | 🔻0.04 (34.41%)

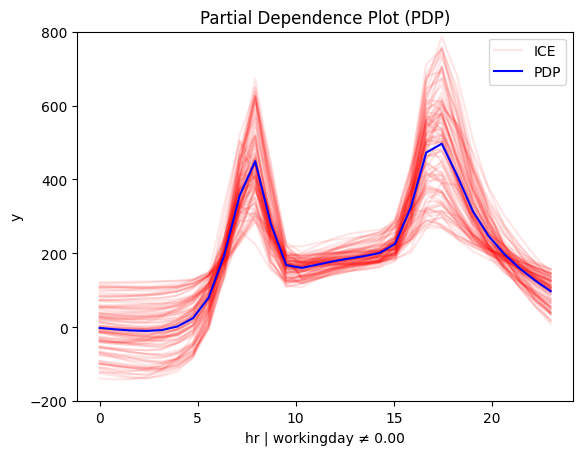

for node_idx in [1, 4]:

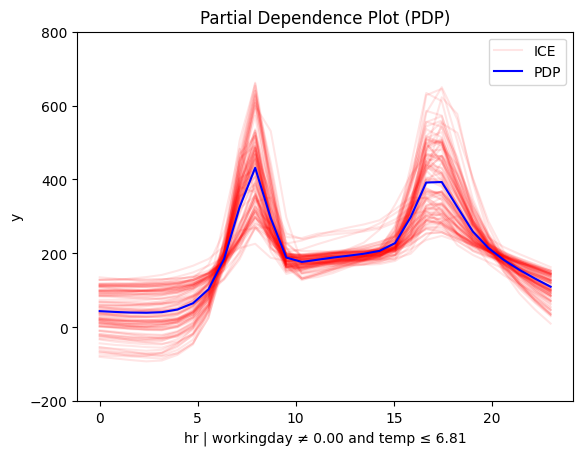

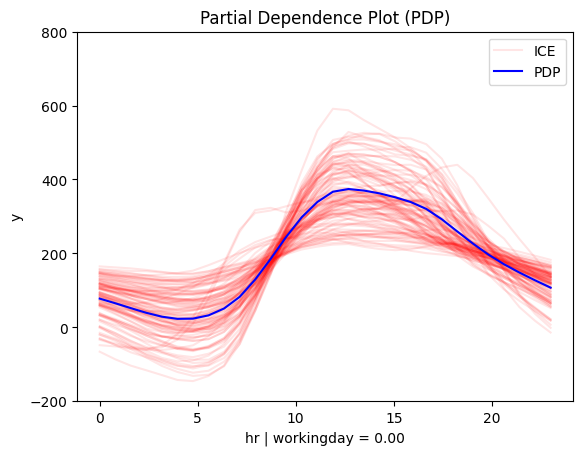

    regional_pdp.plot(feature=3, node_idx=node_idx, centering=True, scale_x_list=scale_x_list, scale_y=scale_y, y_limits=y_limits)

png

png

for node_idx in [2, 3, 5, 6]:

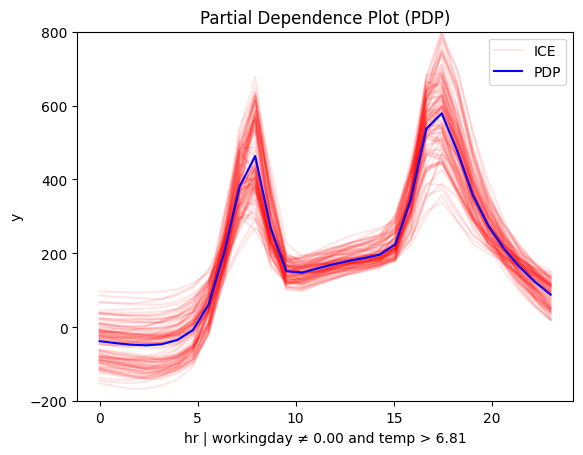

    regional_pdp.plot(feature=3, node_idx=node_idx, centering=True, scale_x_list=scale_x_list, scale_y=scale_y, y_limits=y_limits)

png

png

png

png

RegionalRHALE

regional_rhale = effector.RegionalRHALE(data=X_train.to_numpy(), model=model_forward, model_jac=model_jac, feature_names=feature_names, target_name=target_name)
regional_rhale.summary(features=3, scale_x_list=scale_x_list)

100%|██████████| 1/1 [00:02<00:00,  2.33s/it]



Feature 3 - Full partition tree:
🌳 Full Tree Structure:
───────────────────────
hr 🔹 [id: 0 | heter: 6.25 | inst: 13903 | w: 1.00]
    workingday = 0.00 🔹 [id: 1 | heter: 0.65 | inst: 4385 | w: 0.32]
        temp ≤ 6.81 🔹 [id: 2 | heter: 0.36 | inst: 2187 | w: 0.16]
        temp > 6.81 🔹 [id: 3 | heter: 0.52 | inst: 2198 | w: 0.16]
    workingday ≠ 0.00 🔹 [id: 4 | heter: 6.49 | inst: 9518 | w: 0.68]
--------------------------------------------------
Feature 3 - Statistics per tree level:
🌳 Tree Summary:
─────────────────
Level 0🔹heter: 6.25
    Level 1🔹heter: 4.65 | 🔻1.60 (25.63%)
        Level 2🔹heter: 0.14 | 🔻4.51 (97.00%)

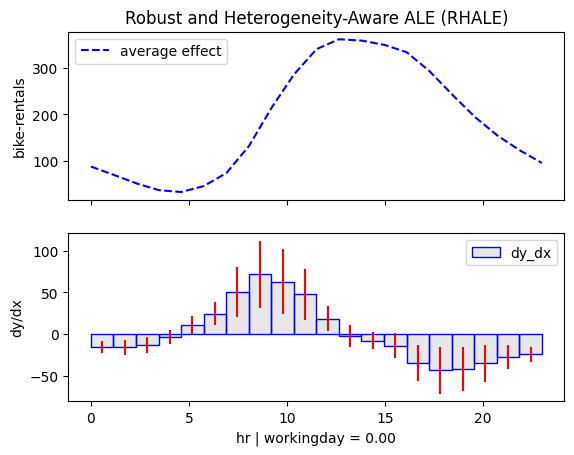

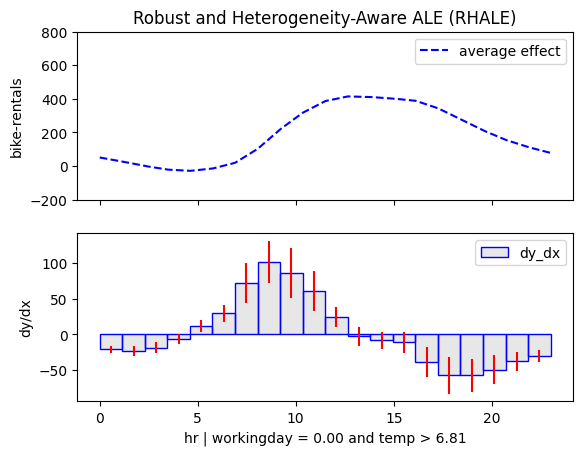

regional_rhale.plot(feature=3, node_idx=1, centering=True, scale_x_list=scale_x_list, scale_y=scale_y)

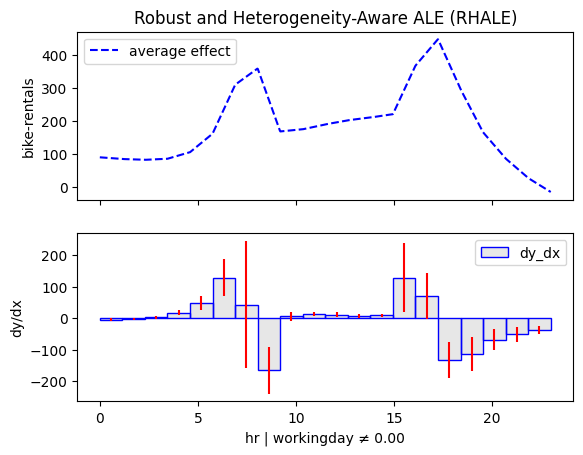

regional_rhale.plot(feature=3, node_idx=4, centering=True, scale_x_list=scale_x_list, scale_y=scale_y)

png

png

for node_idx in [2, 3]:
    regional_rhale.plot(feature=3, node_idx=node_idx, centering=True, scale_x_list=scale_x_list, scale_y=scale_y, y_limits=y_limits)

png

png

Regional SHAP-DP

regional_shap_dp = effector.RegionalShapDP(data=X_train.to_numpy(), model=model_forward, feature_names=feature_names, nof_instances=500)

regional_shap_dp.summary(features=3, scale_x_list=scale_x_list)

PermutationExplainer explainer: 501it [02:59,  2.63it/s]
100%|██████████| 1/1 [03:00<00:00, 180.39s/it]



Feature 3 - Full partition tree:
🌳 Full Tree Structure:
───────────────────────
hr 🔹 [id: 0 | heter: 0.05 | inst: 500 | w: 1.00]
    workingday = 0.00 🔹 [id: 1 | heter: 0.02 | inst: 150 | w: 0.30]
        temp ≤ 6.81 🔹 [id: 2 | heter: 0.01 | inst: 71 | w: 0.14]
        temp > 6.81 🔹 [id: 3 | heter: 0.01 | inst: 79 | w: 0.16]
    workingday ≠ 0.00 🔹 [id: 4 | heter: 0.03 | inst: 350 | w: 0.70]
        temp ≤ 2.20 🔹 [id: 5 | heter: 0.01 | inst: 121 | w: 0.24]
        temp > 2.20 🔹 [id: 6 | heter: 0.02 | inst: 229 | w: 0.46]
--------------------------------------------------
Feature 3 - Statistics per tree level:
🌳 Tree Summary:
─────────────────
Level 0🔹heter: 0.05
    Level 1🔹heter: 0.03 | 🔻0.02 (43.97%)
        Level 2🔹heter: 0.02 | 🔻0.01 (39.22%)

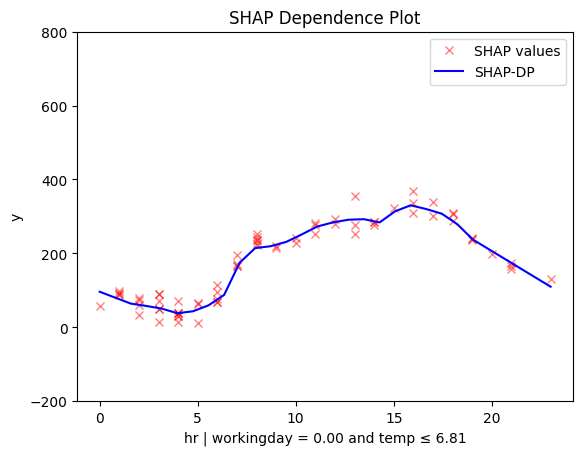

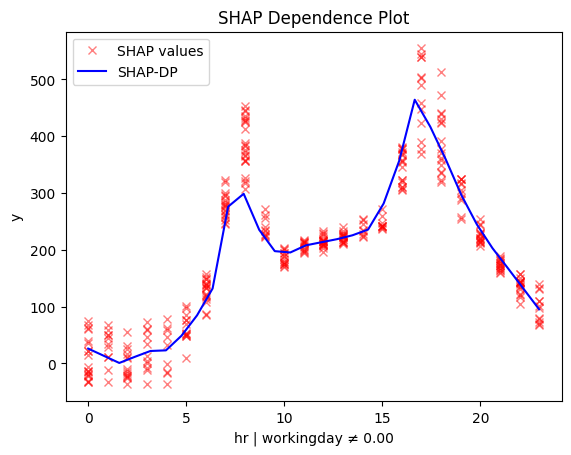

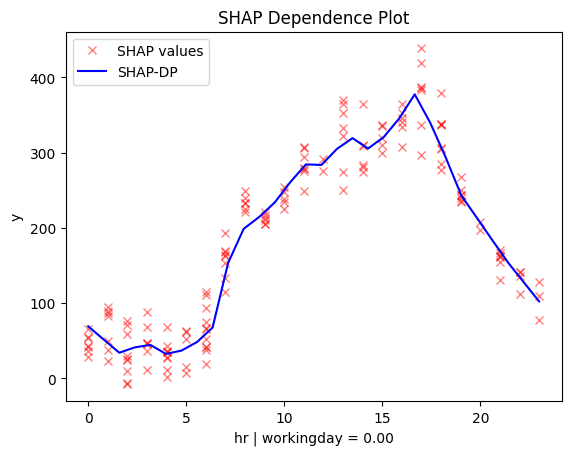

for node_idx in [1, 4]:

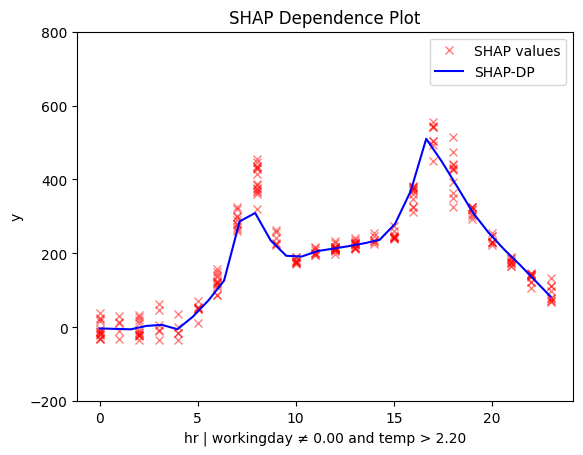

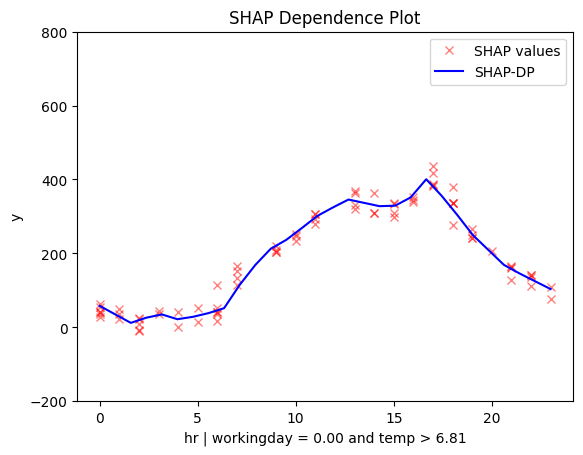

    regional_shap_dp.plot(feature=3, node_idx=node_idx, centering=True, scale_x_list=scale_x_list, scale_y=scale_y)

png

png

for node_idx in [2, 3, 5, 6]:
    regional_shap_dp.plot(feature=3, node_idx=node_idx, centering=True, scale_x_list=scale_x_list, scale_y=scale_y, y_limits=y_limits)

png

png

/Users/dimitriskyriakopoulos/Documents/ath/Effector/Code/effector-git/effector/effector/global_effect_shap.py:469: RuntimeWarning: invalid value encountered in sqrt
  np.sqrt(self.feature_effect["feature_" + str(feature)]["spline_std"](x))

png

png

Conclusion

Regional methods reveal two distinct patterns: one for working days and another for non-working days.

  • On non-working days, the pattern shifts to a single peak around 13:00, likely driven by sightseeing and leisure.
  • On working days, the effect mirrors the global trend, with peaks around 8:00 and 17:00, likely due to commuting.

Diving deeper we observe that temperature interacts with hour forming these patterns:

  • On non-working days peaks between 12:00 and 14:00 become more pronounced in warmer conditions. Makes sense, right? If you're going sightseeing, you probably prefer to do it when the weather is nice.
  • Similarly PDP and ShapDP show that on working days the peaks at 8:00 and 17:00 are dampened in colder conditions, likely because fewer people choose to bike to work in bad weather.
