Regional Effects (unknown black-box function)
This tutorial use the same dataset with the previous tutorial, but instead of explaining the known (synthetic) predictive function, we fit a neural network on the data and explain the neural network. This is a more realistic scenario, since in real-world applications we do not know the underlying function and we only have access to the data. We advise the reader to first read the previous tutorial.
import numpy as np
import effector
import keras
import tensorflow as tf
np.random.seed(12345)
tf.random.set_seed(12345)
2025-02-06 16:11:29.880936: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2025-02-06 16:11:29.883625: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:32] Could not find cuda drivers on your machine, GPU will not be used.
2025-02-06 16:11:29.892498: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:477] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
E0000 00:00:1738854689.907802 164985 cuda_dnn.cc:8310] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
E0000 00:00:1738854689.912281 164985 cuda_blas.cc:1418] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered
2025-02-06 16:11:29.927531: I tensorflow/core/platform/cpu_feature_guard.cc:210] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
Simulation example
Data Generating Distribution
We will generate \(N=500\) examples with \(D=3\) features, which are in the uncorrelated setting all uniformly distributed as follows:
| Feature | Description | Distribution |
|---|---|---|
| \(x_1\) | Uniformly distributed between \(-1\) and \(1\) | \(x_1 \sim \mathcal{U}(-1,1)\) |
| \(x_2\) | Uniformly distributed between \(-1\) and \(1\) | \(x_2 \sim \mathcal{U}(-1,1)\) |
| \(x_3\) | Uniformly distributed between \(-1\) and \(1\) | \(x_3 \sim \mathcal{U}(-1,1)\) |
For the correlated setting we keep the distributional assumptions for \(x_2\) and \(x_3\) but define \(x_1\) such that it is highly correlated with \(x_3\) by: \(x_1 = x_3 + \delta\) with \(\delta \sim \mathcal{N}(0,0.0625)\).
def generate_dataset_uncorrelated(N):
x1 = np.random.uniform(-1, 1, size=N)
x2 = np.random.uniform(-1, 1, size=N)
x3 = np.random.uniform(-1, 1, size=N)
return np.stack((x1, x2, x3), axis=-1)
def generate_dataset_correlated(N):
x3 = np.random.uniform(-1, 1, size=N)
x2 = np.random.uniform(-1, 1, size=N)
x1 = x3 + np.random.normal(loc = np.zeros_like(x3), scale = 0.25)
return np.stack((x1, x2, x3), axis=-1)
# generate the dataset for the uncorrelated and correlated setting
N = 1000
X_uncor_train = generate_dataset_uncorrelated(N)
X_uncor_test = generate_dataset_uncorrelated(10000)
X_cor_train = generate_dataset_correlated(N)
X_cor_test = generate_dataset_correlated(10000)
Black-box function
We will use the following linear model with a subgroup-specific interaction term: $$ y = 3x_1I_{x_3>0} - 3x_1I_{x_3\leq0} + x_3$$

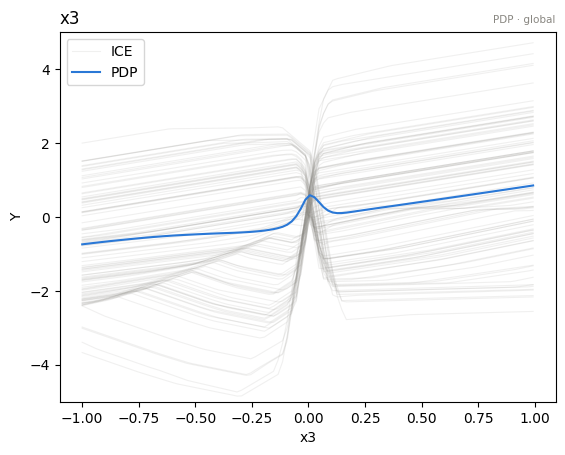

On a global level, there is a high heterogeneity for the features \(x_1\) and \(x_3\) due to their interaction with each other. However, this heterogeneity vanishes to 0 if the feature space is separated into subregions:
| Feature | Region | Average Effect | Heterogeneity |
|---|---|---|---|
| \(x_1\) | \(x_3>0\) | \(3x_1\) | 0 |
| \(x_1\) | \(x_3\leq 0\) | \(-3x_1\) | 0 |
| \(x_2\) | all | 0 | 0 |
| \(x_3\) | \(x_3>0\) | \(x_3\) | 0 |
| \(x_3\) | \(x_3\leq 0\) | \(x_3\) | 0 |
def generate_target(X):
f = np.where(X[:,2] > 0, 3*X[:,0] + X[:,2], -3*X[:,0] + X[:,2])
epsilon = np.random.normal(loc = np.zeros_like(X[:,0]), scale = 0.1)
Y = f + epsilon
return(Y)
# generate target for uncorrelated and correlated setting
Y_uncor_train = generate_target(X_uncor_train)
Y_uncor_test = generate_target(X_uncor_test)
Y_cor_train = generate_target(X_cor_train)
Y_cor_test = generate_target(X_cor_test)
Fit a Neural Network
We create a two-layer feedforward Neural Network, a weight decay of 0.01 for 100 epochs. We train two instances of this NN, one on the uncorrelated and one on the correlated setting. In both cases, the NN achieves a Mean Squared Error of about \(0.17\) units.
# Train - Evaluate - Explain a neural network
model_uncor = keras.Sequential([
keras.layers.Dense(10, activation="relu", input_shape=(3,)),
keras.layers.Dense(10, activation="relu", input_shape=(3,)),
keras.layers.Dense(1)
])
optimizer = keras.optimizers.Adam(learning_rate=0.01)
model_uncor.compile(optimizer=optimizer, loss="mse")
model_uncor.fit(X_uncor_train, Y_uncor_train, epochs=100)
model_uncor.evaluate(X_uncor_test, Y_uncor_test)
Epoch 1/100
/home/givasile/miniconda3/envs/effector-dev/lib/python3.10/site-packages/keras/src/layers/core/dense.py:87: UserWarning: Do not pass an `input_shape`/`input_dim` argument to a layer. When using Sequential models, prefer using an `Input(shape)` object as the first layer in the model instead.
super().__init__(activity_regularizer=activity_regularizer, **kwargs)
2025-02-06 16:11:31.598334: E external/local_xla/xla/stream_executor/cuda/cuda_driver.cc:152] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: CUDA_ERROR_COMPAT_NOT_SUPPORTED_ON_DEVICE: forward compatibility was attempted on non supported HW
2025-02-06 16:11:31.598368: I external/local_xla/xla/stream_executor/cuda/cuda_diagnostics.cc:137] retrieving CUDA diagnostic information for host: givasile-ubuntu-XPS-15-9500
2025-02-06 16:11:31.598377: I external/local_xla/xla/stream_executor/cuda/cuda_diagnostics.cc:144] hostname: givasile-ubuntu-XPS-15-9500
2025-02-06 16:11:31.598577: I external/local_xla/xla/stream_executor/cuda/cuda_diagnostics.cc:168] libcuda reported version is: 560.35.5
2025-02-06 16:11:31.598612: I external/local_xla/xla/stream_executor/cuda/cuda_diagnostics.cc:172] kernel reported version is: 550.120.0
2025-02-06 16:11:31.598621: E external/local_xla/xla/stream_executor/cuda/cuda_diagnostics.cc:262] kernel version 550.120.0 does not match DSO version 560.35.5 -- cannot find working devices in this configuration
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m1s[0m 818us/step - loss: 2.8711
Epoch 2/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 713us/step - loss: 1.1402
Epoch 3/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 618us/step - loss: 0.4964
Epoch 4/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 644us/step - loss: 0.3660
Epoch 5/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 579us/step - loss: 0.2936
Epoch 6/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 694us/step - loss: 0.2423
Epoch 7/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 576us/step - loss: 0.2082
Epoch 8/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 605us/step - loss: 0.1855
Epoch 9/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 619us/step - loss: 0.1674
Epoch 10/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 629us/step - loss: 0.1528
Epoch 11/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 593us/step - loss: 0.1407
Epoch 12/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 594us/step - loss: 0.1303
Epoch 13/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 616us/step - loss: 0.1200
Epoch 14/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 618us/step - loss: 0.1132
Epoch 15/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 602us/step - loss: 0.1068
Epoch 16/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 690us/step - loss: 0.1020
Epoch 17/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 593us/step - loss: 0.0960
Epoch 18/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 580us/step - loss: 0.0930
Epoch 19/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 609us/step - loss: 0.0897
Epoch 20/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 659us/step - loss: 0.0877
Epoch 21/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 628us/step - loss: 0.0834
Epoch 22/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 617us/step - loss: 0.0820
Epoch 23/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 627us/step - loss: 0.0774
Epoch 24/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 592us/step - loss: 0.0778
Epoch 25/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 615us/step - loss: 0.0727
Epoch 26/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 620us/step - loss: 0.0723
Epoch 27/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 603us/step - loss: 0.0699
Epoch 28/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 612us/step - loss: 0.0685
Epoch 29/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 659us/step - loss: 0.0654
Epoch 30/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 655us/step - loss: 0.0672
Epoch 31/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 722us/step - loss: 0.0668
Epoch 32/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 634us/step - loss: 0.0633
Epoch 33/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 669us/step - loss: 0.0654
Epoch 34/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 694us/step - loss: 0.0680
Epoch 35/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 625us/step - loss: 0.0636
Epoch 36/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 616us/step - loss: 0.0637
Epoch 37/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 737us/step - loss: 0.0658
Epoch 38/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 751us/step - loss: 0.0630
Epoch 39/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 785us/step - loss: 0.0618
Epoch 40/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 679us/step - loss: 0.0615
Epoch 41/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 684us/step - loss: 0.0628
Epoch 42/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 774us/step - loss: 0.0586
Epoch 43/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 824us/step - loss: 0.0614
Epoch 44/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 661us/step - loss: 0.0590
Epoch 45/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 702us/step - loss: 0.0595
Epoch 46/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 761us/step - loss: 0.0594
Epoch 47/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 699us/step - loss: 0.0600
Epoch 48/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 865us/step - loss: 0.0556
Epoch 49/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 750us/step - loss: 0.0547
Epoch 50/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 727us/step - loss: 0.0612
Epoch 51/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 604us/step - loss: 0.0546
Epoch 52/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 775us/step - loss: 0.0555
Epoch 53/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 1ms/step - loss: 0.0587
Epoch 54/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 788us/step - loss: 0.0559
Epoch 55/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 667us/step - loss: 0.0551
Epoch 56/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 790us/step - loss: 0.0540
Epoch 57/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 810us/step - loss: 0.0532
Epoch 58/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 715us/step - loss: 0.0549
Epoch 59/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 649us/step - loss: 0.0518
Epoch 60/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 620us/step - loss: 0.0525
Epoch 61/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 696us/step - loss: 0.0547
Epoch 62/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 629us/step - loss: 0.0519
Epoch 63/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 684us/step - loss: 0.0541
Epoch 64/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 809us/step - loss: 0.0514
Epoch 65/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 822us/step - loss: 0.0535
Epoch 66/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 613us/step - loss: 0.0493
Epoch 67/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 741us/step - loss: 0.0509
Epoch 68/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 657us/step - loss: 0.0486
Epoch 69/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 759us/step - loss: 0.0471
Epoch 70/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 818us/step - loss: 0.0493
Epoch 71/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 600us/step - loss: 0.0512
Epoch 72/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 592us/step - loss: 0.0482
Epoch 73/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 632us/step - loss: 0.0492
Epoch 74/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 774us/step - loss: 0.0465
Epoch 75/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 634us/step - loss: 0.0483
Epoch 76/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 658us/step - loss: 0.0448
Epoch 77/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 683us/step - loss: 0.0472
Epoch 78/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 779us/step - loss: 0.0445
Epoch 79/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 659us/step - loss: 0.0451
Epoch 80/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 727us/step - loss: 0.0443
Epoch 81/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 769us/step - loss: 0.0452
Epoch 82/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 681us/step - loss: 0.0440
Epoch 83/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 742us/step - loss: 0.0463
Epoch 84/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 727us/step - loss: 0.0443
Epoch 85/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 2ms/step - loss: 0.0450
Epoch 86/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 2ms/step - loss: 0.0433
Epoch 87/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 2ms/step - loss: 0.0445
Epoch 88/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 1ms/step - loss: 0.0421
Epoch 89/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 1ms/step - loss: 0.0424
Epoch 90/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 982us/step - loss: 0.0424
Epoch 91/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 2ms/step - loss: 0.0437
Epoch 92/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 1ms/step - loss: 0.0406
Epoch 93/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 1ms/step - loss: 0.0418
Epoch 94/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 1ms/step - loss: 0.0520
Epoch 95/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 646us/step - loss: 0.0440
Epoch 96/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 598us/step - loss: 0.0409
Epoch 97/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 922us/step - loss: 0.0434
Epoch 98/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 860us/step - loss: 0.0414
Epoch 99/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 933us/step - loss: 0.0405
Epoch 100/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 694us/step - loss: 0.0534
[1m313/313[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 575us/step - loss: 0.0702
0.0672859400510788
model_cor = keras.Sequential([
keras.layers.Dense(10, activation="relu", input_shape=(3,)),
keras.layers.Dense(10, activation="relu", input_shape=(3,)),
keras.layers.Dense(1)
])
optimizer = keras.optimizers.Adam(learning_rate=0.01)
model_cor.compile(optimizer=optimizer, loss="mse")
model_cor.fit(X_cor_train, Y_cor_train, epochs=100)
model_cor.evaluate(X_cor_test, Y_cor_test)
Epoch 1/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m1s[0m 715us/step - loss: 1.9865
Epoch 2/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 670us/step - loss: 0.4056
Epoch 3/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 653us/step - loss: 0.1421
Epoch 4/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 590us/step - loss: 0.1077
Epoch 5/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 627us/step - loss: 0.0899
Epoch 6/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 616us/step - loss: 0.0795
Epoch 7/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 613us/step - loss: 0.0694
Epoch 8/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 598us/step - loss: 0.0617
Epoch 9/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 655us/step - loss: 0.0546
Epoch 10/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 637us/step - loss: 0.0497
Epoch 11/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 631us/step - loss: 0.0458
Epoch 12/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 606us/step - loss: 0.0429
Epoch 13/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 627us/step - loss: 0.0400
Epoch 14/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 607us/step - loss: 0.0376
Epoch 15/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 580us/step - loss: 0.0361
Epoch 16/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 644us/step - loss: 0.0349
Epoch 17/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 603us/step - loss: 0.0332
Epoch 18/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 643us/step - loss: 0.0323
Epoch 19/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 635us/step - loss: 0.0313
Epoch 20/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 619us/step - loss: 0.0308
Epoch 21/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 631us/step - loss: 0.0302
Epoch 22/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 655us/step - loss: 0.0295
Epoch 23/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 594us/step - loss: 0.0291
Epoch 24/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 633us/step - loss: 0.0286
Epoch 25/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 586us/step - loss: 0.0277
Epoch 26/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 621us/step - loss: 0.0278
Epoch 27/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 623us/step - loss: 0.0274
Epoch 28/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 618us/step - loss: 0.0272
Epoch 29/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 595us/step - loss: 0.0265
Epoch 30/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 573us/step - loss: 0.0265
Epoch 31/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 586us/step - loss: 0.0261
Epoch 32/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 607us/step - loss: 0.0258
Epoch 33/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 596us/step - loss: 0.0256
Epoch 34/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 598us/step - loss: 0.0251
Epoch 35/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 608us/step - loss: 0.0249
Epoch 36/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 605us/step - loss: 0.0248
Epoch 37/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 607us/step - loss: 0.0250
Epoch 38/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 626us/step - loss: 0.0236
Epoch 39/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 654us/step - loss: 0.0238
Epoch 40/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 656us/step - loss: 0.0242
Epoch 41/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 648us/step - loss: 0.0233
Epoch 42/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 602us/step - loss: 0.0230
Epoch 43/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 602us/step - loss: 0.0227
Epoch 44/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 622us/step - loss: 0.0226
Epoch 45/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 581us/step - loss: 0.0224
Epoch 46/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 618us/step - loss: 0.0225
Epoch 47/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 603us/step - loss: 0.0220
Epoch 48/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 614us/step - loss: 0.0220
Epoch 49/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 591us/step - loss: 0.0212
Epoch 50/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 582us/step - loss: 0.0210
Epoch 51/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 626us/step - loss: 0.0214
Epoch 52/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 628us/step - loss: 0.0207
Epoch 53/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 609us/step - loss: 0.0203
Epoch 54/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 689us/step - loss: 0.0205
Epoch 55/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 626us/step - loss: 0.0210
Epoch 56/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 651us/step - loss: 0.0199
Epoch 57/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 592us/step - loss: 0.0199
Epoch 58/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 604us/step - loss: 0.0195
Epoch 59/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 629us/step - loss: 0.0196
Epoch 60/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 595us/step - loss: 0.0193
Epoch 61/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 596us/step - loss: 0.0196
Epoch 62/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 664us/step - loss: 0.0193
Epoch 63/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 601us/step - loss: 0.0193
Epoch 64/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 570us/step - loss: 0.0186
Epoch 65/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 614us/step - loss: 0.0190
Epoch 66/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 658us/step - loss: 0.0187
Epoch 67/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 607us/step - loss: 0.0189
Epoch 68/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 715us/step - loss: 0.0183
Epoch 69/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 642us/step - loss: 0.0183
Epoch 70/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 614us/step - loss: 0.0188
Epoch 71/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 617us/step - loss: 0.0184
Epoch 72/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 664us/step - loss: 0.0181
Epoch 73/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 617us/step - loss: 0.0181
Epoch 74/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 601us/step - loss: 0.0182
Epoch 75/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 563us/step - loss: 0.0179
Epoch 76/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 582us/step - loss: 0.0180
Epoch 77/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 580us/step - loss: 0.0177
Epoch 78/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 623us/step - loss: 0.0178
Epoch 79/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 572us/step - loss: 0.0178
Epoch 80/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 587us/step - loss: 0.0176
Epoch 81/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 603us/step - loss: 0.0172
Epoch 82/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 587us/step - loss: 0.0173
Epoch 83/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 614us/step - loss: 0.0175
Epoch 84/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 590us/step - loss: 0.0174
Epoch 85/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 649us/step - loss: 0.0167
Epoch 86/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 667us/step - loss: 0.0173
Epoch 87/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 618us/step - loss: 0.0170
Epoch 88/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 601us/step - loss: 0.0167
Epoch 89/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 595us/step - loss: 0.0167
Epoch 90/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 698us/step - loss: 0.0171
Epoch 91/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 631us/step - loss: 0.0164
Epoch 92/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 623us/step - loss: 0.0166
Epoch 93/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 587us/step - loss: 0.0167
Epoch 94/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 611us/step - loss: 0.0162
Epoch 95/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 557us/step - loss: 0.0168
Epoch 96/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 625us/step - loss: 0.0165
Epoch 97/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 676us/step - loss: 0.0164
Epoch 98/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 622us/step - loss: 0.0165
Epoch 99/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 647us/step - loss: 0.0164
Epoch 100/100
[1m32/32[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 608us/step - loss: 0.0161
[1m313/313[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 473us/step - loss: 0.0315
0.029413504526019096
PDP
Uncorrelated setting
Global PDP
pdp = effector.PDP(data=X_uncor_train, model=model_uncor, feature_names=['x1','x2','x3'], target_name="Y")

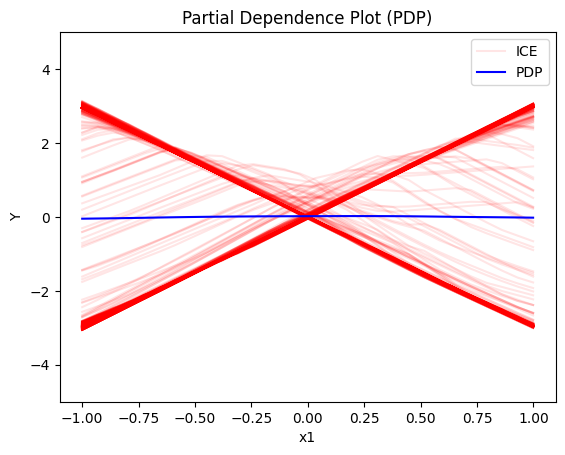

pdp.plot(feature=0, centering=True, show_avg_output=False, heterogeneity="ice", y_limits=[-5, 5])

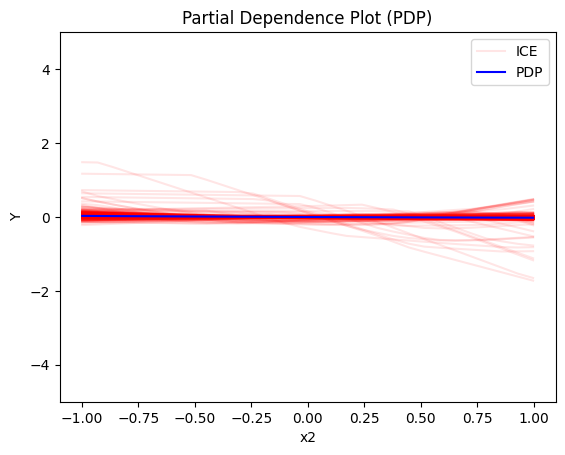

pdp.plot(feature=1, centering=True, show_avg_output=False, heterogeneity="ice", y_limits=[-5, 5])

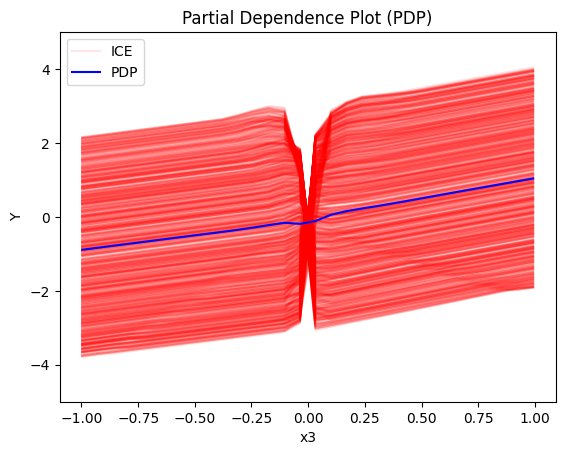

pdp.plot(feature=2, centering=True, show_avg_output=False, heterogeneity="ice", y_limits=[-5, 5])
Regional PDP
regional_pdp = effector.RegionalPDP(data=X_uncor_train, model=model_uncor, feature_names=['x1', 'x2', 'x3'],
axis_limits=np.array([[-1, 1], [-1, 1], [-1, 1]]).T)
space_partitioner = effector.space_partitioning.Best(heter_pcg_drop_thres=0.3, nof_candidate_splits_for_numerical=10)
regional_pdp.fit(features="all", space_partitioner=space_partitioner)
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3/3 [00:00<00:00, 52.46it/s]
regional_pdp.summary(features=0)
Feature 0 - Full partition tree:
Node id: 0, name: x1, heter: 3.35 || nof_instances: 1000 || weight: 1.00
Node id: 1, name: x1 | x3 <= 0.0, heter: 0.11 || nof_instances: 1000 || weight: 1.00
Node id: 2, name: x1 | x3 > 0.0, heter: 0.15 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 0 - Statistics per tree level:
Level 0, heter: 3.35
Level 1, heter: 0.27 || heter drop : 3.08 (units), 92.01% (pcg)

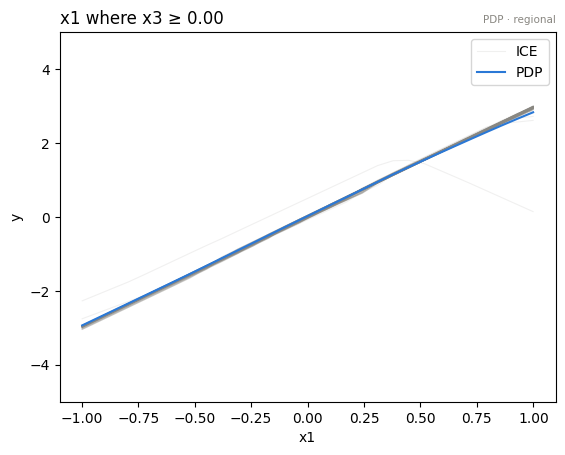

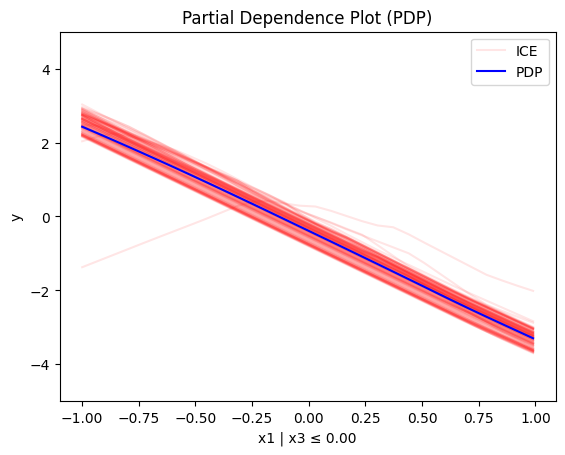

regional_pdp.plot(feature=0, node_idx=1, heterogeneity="ice", y_limits=[-5, 5])
regional_pdp.plot(feature=0, node_idx=2, heterogeneity="ice", y_limits=[-5, 5])
regional_pdp.summary(features=1)
Feature 1 - Full partition tree:
Node id: 0, name: x2, heter: 3.21 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 1 - Statistics per tree level:
Level 0, heter: 3.21
regional_pdp.summary(features=2)
Feature 2 - Full partition tree:
Node id: 0, name: x3, heter: 2.84 || nof_instances: 1000 || weight: 1.00
Node id: 1, name: x3 | x1 <= 0.0, heter: 0.70 || nof_instances: 1000 || weight: 1.00
Node id: 2, name: x3 | x1 > 0.0, heter: 0.69 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 2 - Statistics per tree level:
Level 0, heter: 2.84
Level 1, heter: 1.39 || heter drop : 1.45 (units), 51.09% (pcg)

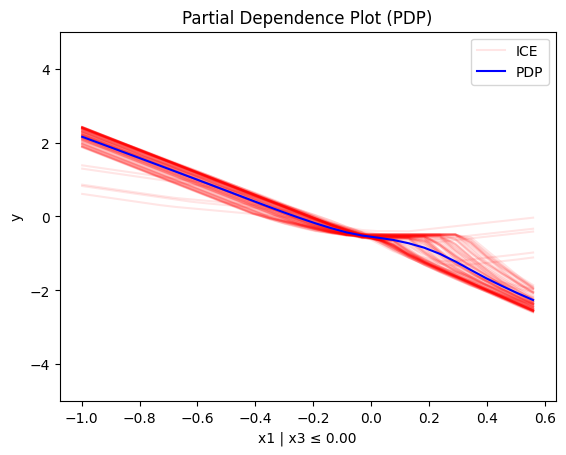

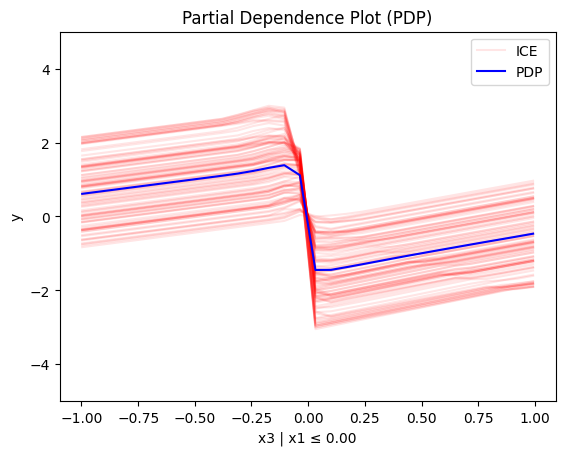

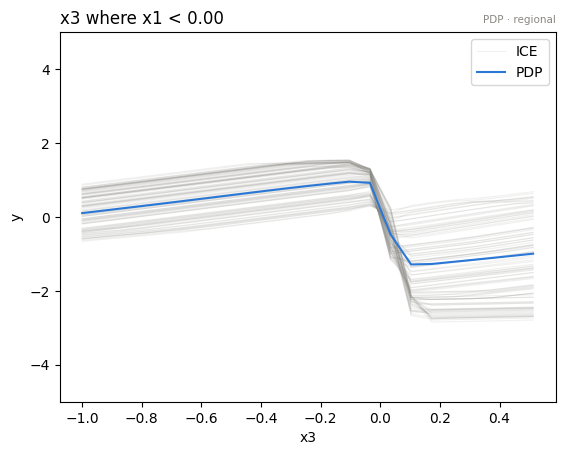

regional_pdp.plot(feature=2, node_idx=1, heterogeneity="ice", centering=True, y_limits=[-5, 5])

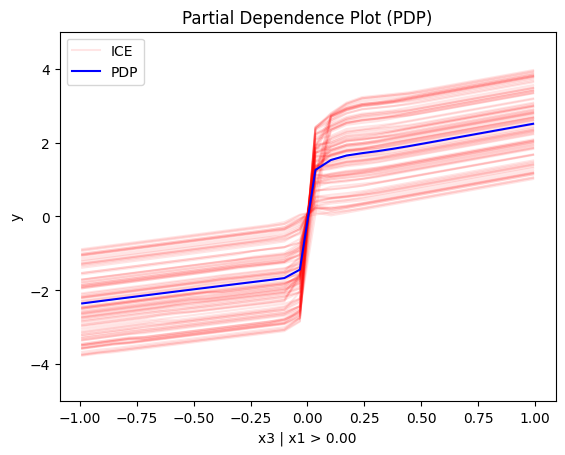

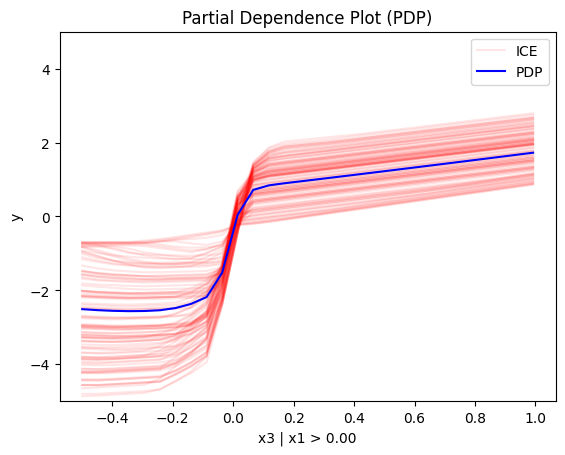

regional_pdp.plot(feature=2, node_idx=2, heterogeneity="ice", centering=True, y_limits=[-5, 5])
Conclusion
For the Global PDP:
- the average effect of \(x_1\) is \(0\) with some heterogeneity implied by the interaction with \(x_1\). The heterogeneity is expressed with two opposite lines; \(-3x_1\) when \(x_1 \leq 0\) and \(3x_1\) when \(x_1 >0\)
- the average effect of \(x_2\) to be \(0\) without heterogeneity
- the average effect of \(x_3\) to be \(x_3\) with some heterogeneity due to the interaction with \(x_1\). The heterogeneity is expressed with a discontinuity around \(x_3=0\), with either a positive or a negative offset depending on the value of \(x_1^i\)
For the Regional PDP:
- For \(x_1\), the algorithm finds two regions, one for \(x_3 \leq 0\) and one for \(x_3 > 0\)
- when \(x_3>0\) the effect is \(3x_1\)
- when \(x_3 \leq 0\), the effect is \(-3x_1\)
- For \(x_2\) the algorithm does not find any subregion
- For \(x_3\), there is a change in the offset:
- when \(x_1>0\) the line is \(x_3 - 3x_1^i\) in the first half and \(x_3 + 3x_1^i\) later
- when \(x_1<0\) the line is \(x_3 + 3x_1^i\) in the first half and \(x_3 - 3x_1^i\) later
Correlated setting
Global PDP

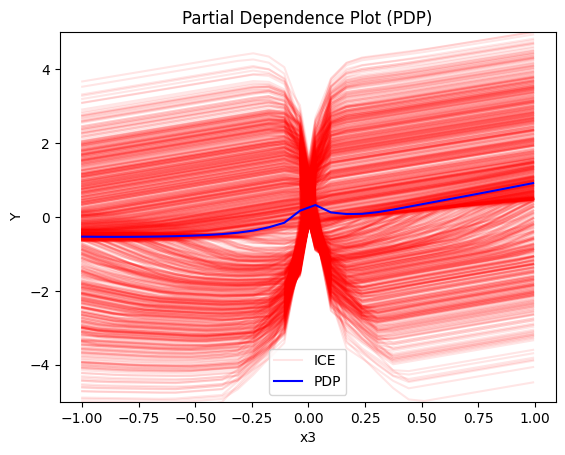

pdp = effector.PDP(data=X_cor_train, model=model_cor, feature_names=['x1','x2','x3'], target_name="Y")

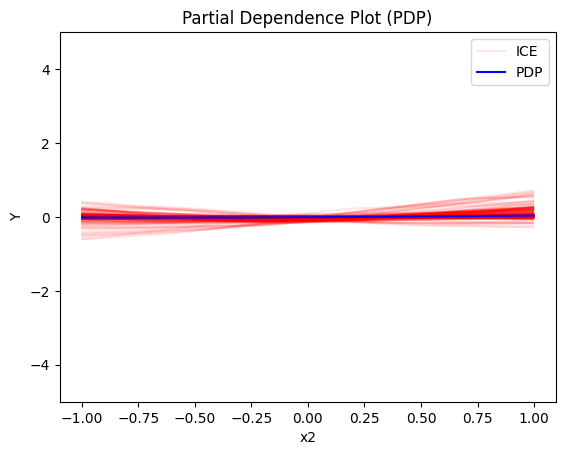

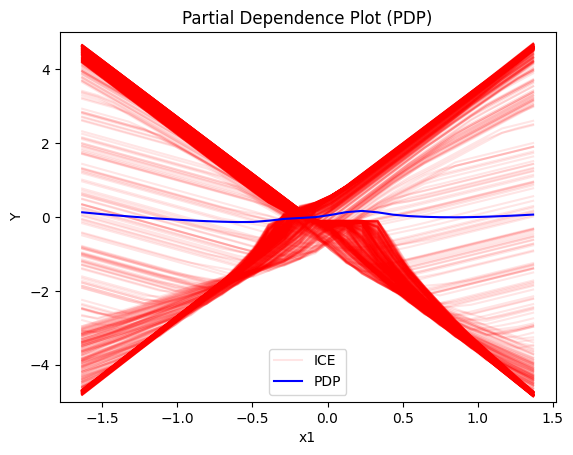

pdp.plot(feature=0, centering=True, show_avg_output=False, heterogeneity="ice", y_limits=[-5, 5])
pdp.plot(feature=1, centering=True, show_avg_output=False, heterogeneity="ice", y_limits=[-5, 5])
pdp.plot(feature=2, centering=True, show_avg_output=False, heterogeneity="ice", y_limits=[-5, 5])
Regional-PDP
regional_pdp = effector.RegionalPDP(data=X_cor_train, model=model_cor, feature_names=['x1', 'x2', 'x3'],
axis_limits=np.array([[-1, 1], [-1, 1], [-1, 1]]).T)
space_partitioner = effector.space_partitioning.Best(heter_pcg_drop_thres=0.4, nof_candidate_splits_for_numerical=10)
regional_pdp.fit(features="all", space_partitioner=space_partitioner)
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3/3 [00:00<00:00, 48.64it/s]
regional_pdp.summary(features=0)
Feature 0 - Full partition tree:
Node id: 0, name: x1, heter: 2.05 || nof_instances: 900 || weight: 1.00
Node id: 1, name: x1 | x3 <= 0.0, heter: 0.11 || nof_instances: 900 || weight: 1.00
Node id: 2, name: x1 | x3 > 0.0, heter: 0.10 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 0 - Statistics per tree level:
Level 0, heter: 2.05
Level 1, heter: 0.21 || heter drop : 1.85 (units), 89.81% (pcg)

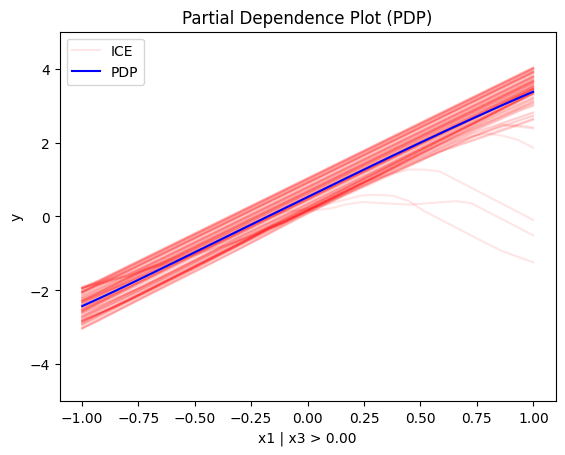

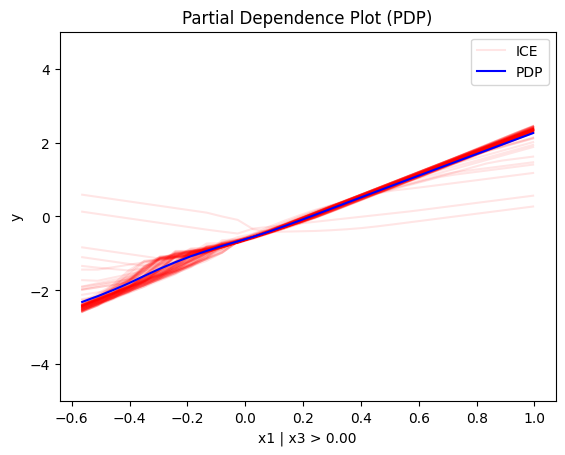

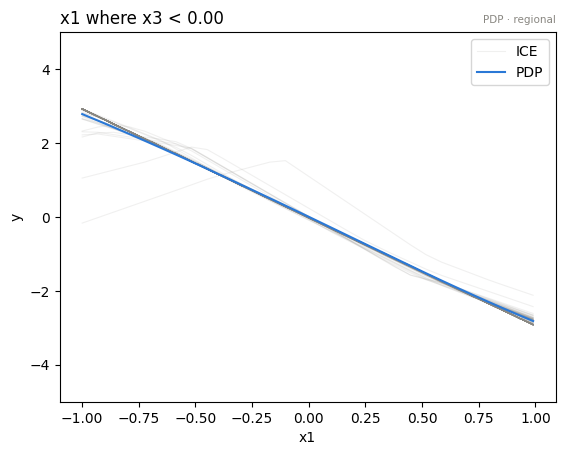

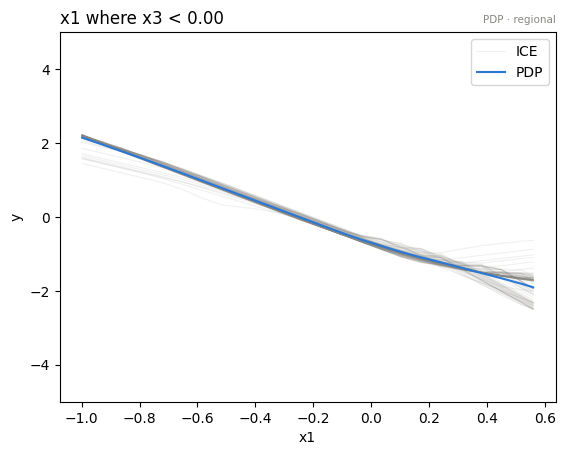

regional_pdp.plot(feature=0, node_idx=1, heterogeneity="ice", centering=True, y_limits=[-5, 5])

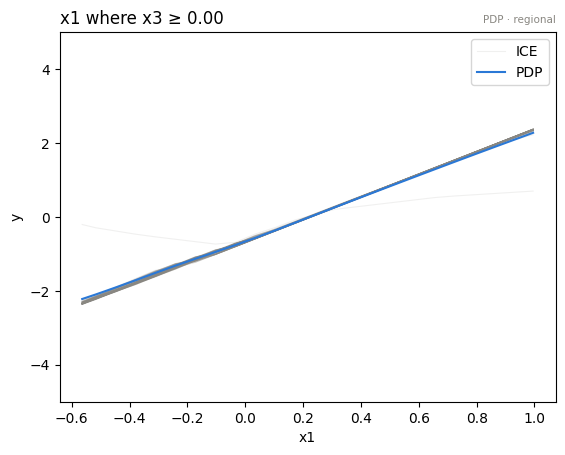

regional_pdp.plot(feature=0, node_idx=2, heterogeneity="ice", centering=True, y_limits=[-5, 5])
regional_pdp.summary(features=1)
Feature 1 - Full partition tree:
Node id: 0, name: x2, heter: 1.25 || nof_instances: 900 || weight: 1.00
Node id: 1, name: x2 | x1 <= 0.4, heter: 0.57 || nof_instances: 900 || weight: 1.00
Node id: 2, name: x2 | x1 > 0.4, heter: 0.49 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 1 - Statistics per tree level:
Level 0, heter: 1.25
Level 1, heter: 1.06 || heter drop : 0.19 (units), 15.48% (pcg)
regional_pdp.summary(features=2)
Feature 2 - Full partition tree:
Node id: 0, name: x3, heter: 1.82 || nof_instances: 900 || weight: 1.00
Node id: 1, name: x3 | x1 <= -0.2, heter: 0.45 || nof_instances: 900 || weight: 1.00
Node id: 2, name: x3 | x1 > -0.2, heter: 0.57 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 2 - Statistics per tree level:
Level 0, heter: 1.82
Level 1, heter: 1.02 || heter drop : 0.80 (units), 44.10% (pcg)

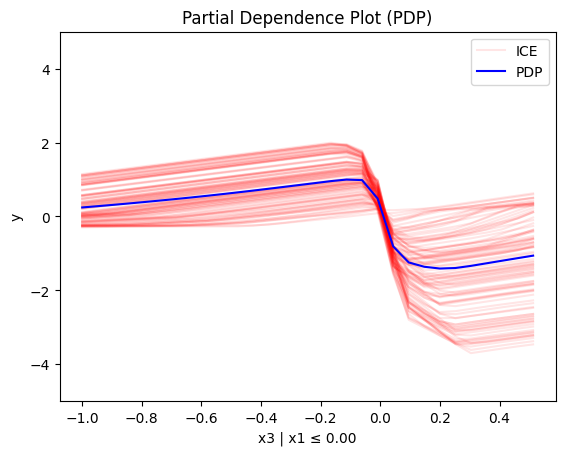

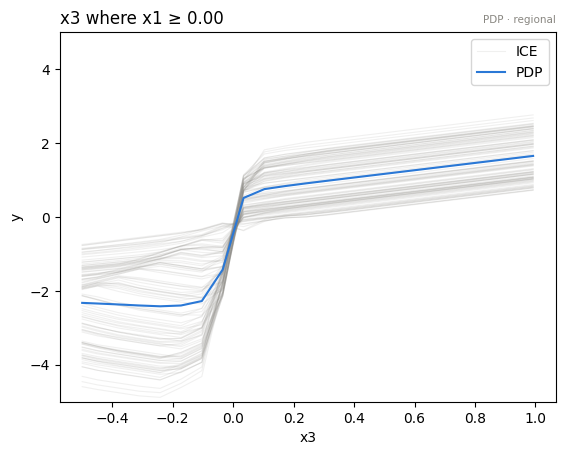

regional_pdp.plot(feature=2, node_idx=1, heterogeneity="ice", centering=True, y_limits=[-5, 5])
regional_pdp.plot(feature=2, node_idx=2, heterogeneity="ice", centering=True, y_limits=[-5, 5])
Conclusion
(RH)ALE
def model_uncor_jac(x):
x_tensor = tf.convert_to_tensor(x, dtype=tf.float32)
with tf.GradientTape() as t:
t.watch(x_tensor)
pred = model_uncor(x_tensor)
grads = t.gradient(pred, x_tensor)
return grads.numpy()
def model_cor_jac(x):
x_tensor = tf.convert_to_tensor(x, dtype=tf.float32)
with tf.GradientTape() as t:
t.watch(x_tensor)
pred = model_cor(x_tensor)
grads = t.gradient(pred, x_tensor)
return grads.numpy()
Uncorrelated setting
Global RHALE
rhale = effector.RHALE(data=X_uncor_train, model=model_uncor, model_jac=model_uncor_jac, feature_names=['x1','x2','x3'], target_name="Y")
binning_method = effector.axis_partitioning.Fixed(10, min_points_per_bin=0)
rhale.fit(features="all", binning_method=binning_method, centering=True)

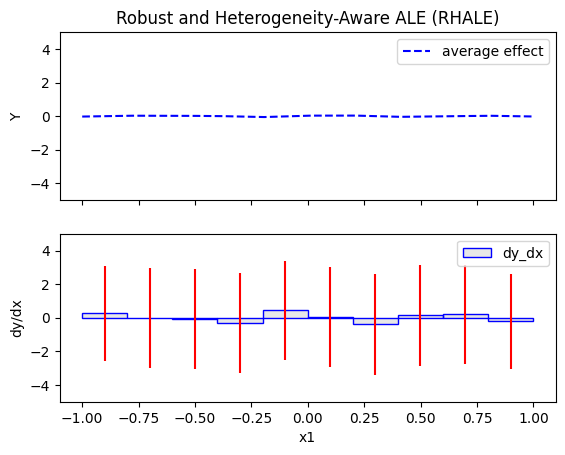

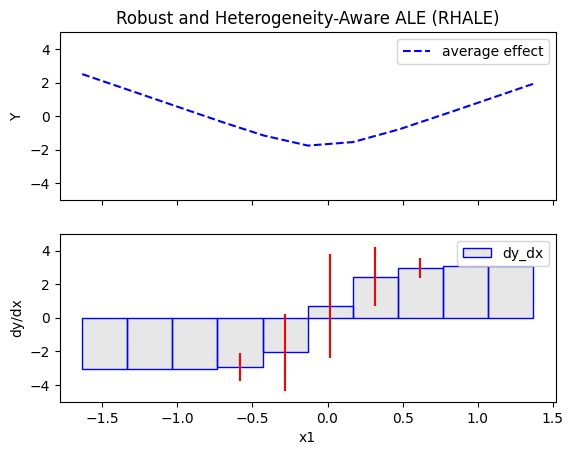

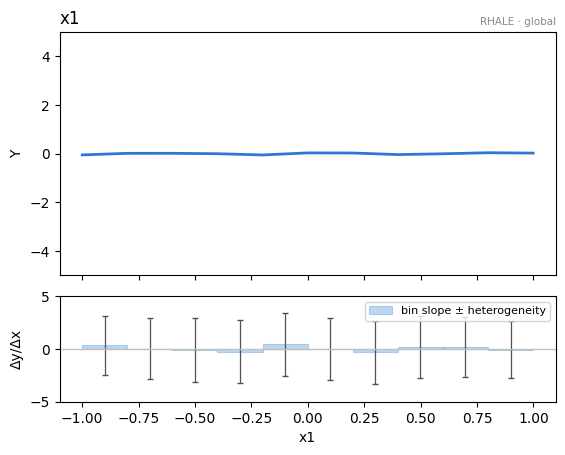

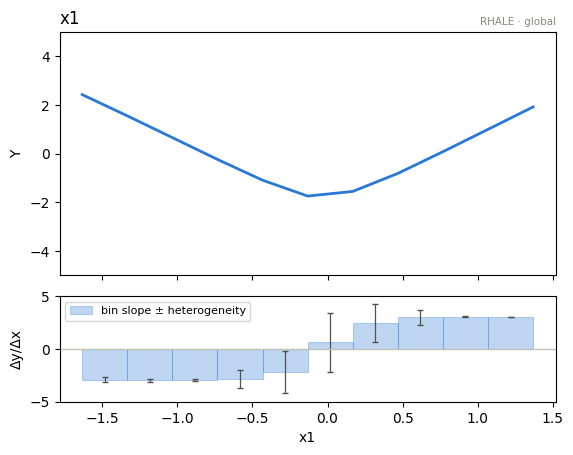

rhale.plot(feature=0, centering=True, heterogeneity="std", show_avg_output=False, y_limits=[-5, 5], dy_limits=[-5, 5])

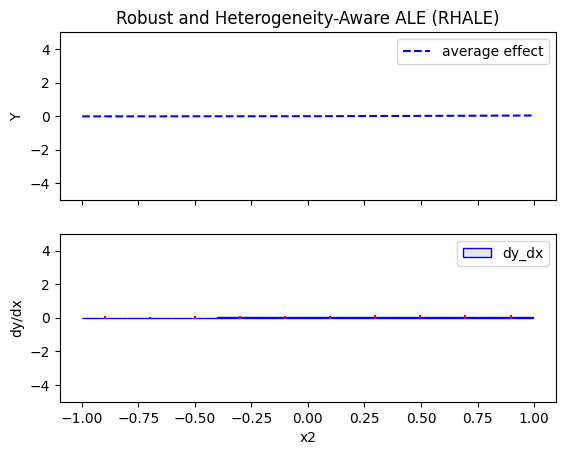

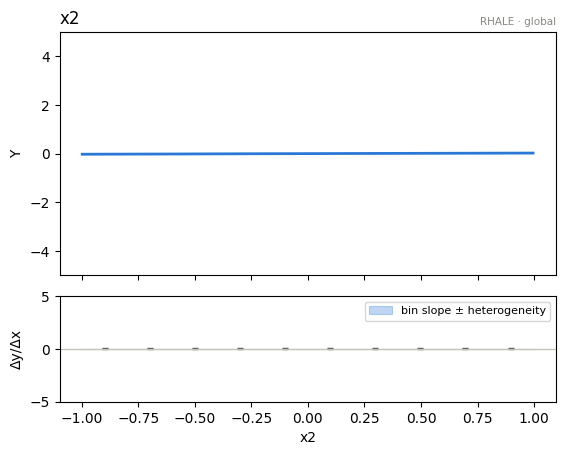

rhale.plot(feature=1, centering=True, heterogeneity="std", show_avg_output=False, y_limits=[-5, 5], dy_limits=[-5, 5])

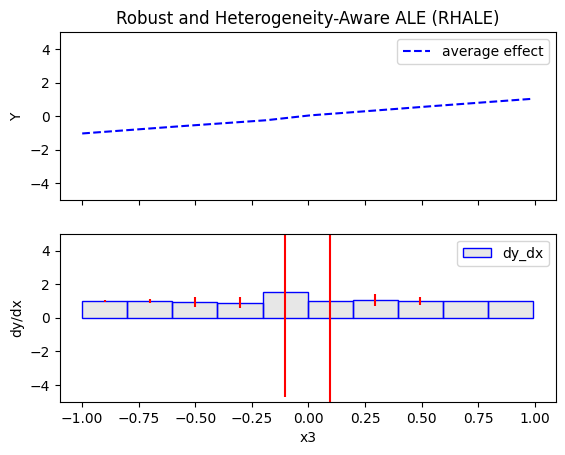

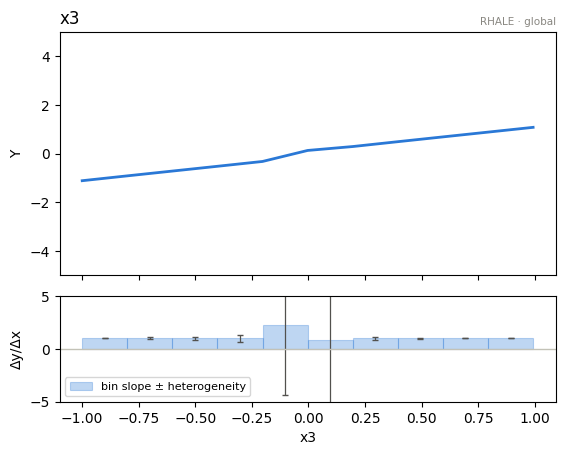

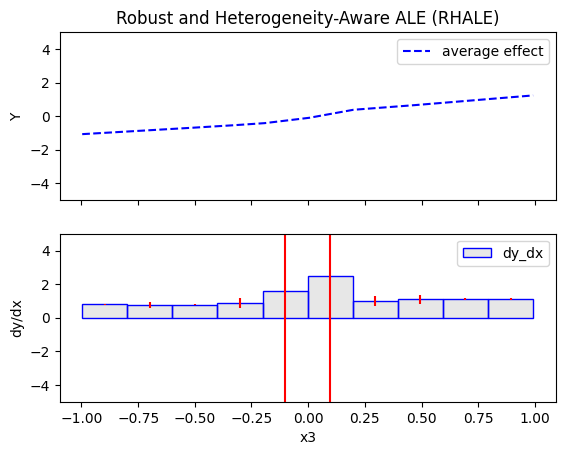

rhale.plot(feature=2, centering=True, heterogeneity="std", show_avg_output=False, y_limits=[-5, 5], dy_limits=[-5, 5])
Regional RHALE
regional_rhale = effector.RegionalRHALE(
data=X_uncor_train,
model=model_uncor,
model_jac=model_uncor_jac,
feature_names=['x1', 'x2', 'x3'],
axis_limits=np.array([[-1, 1], [-1, 1], [-1, 1]]).T)
binning_method = effector.axis_partitioning.Fixed(11, min_points_per_bin=0)
space_partitioner = effector.space_partitioning.Best(heter_pcg_drop_thres=0.6, nof_candidate_splits_for_numerical=10)
regional_rhale.fit(
features="all",
binning_method=binning_method,
space_partitioner=space_partitioner
)
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3/3 [00:00<00:00, 16.63it/s]
regional_rhale.summary(features=0)
Feature 0 - Full partition tree:
Node id: 0, name: x1, heter: 8.34 || nof_instances: 1000 || weight: 1.00
Node id: 1, name: x1 | x3 <= 0.0, heter: 0.31 || nof_instances: 1000 || weight: 1.00
Node id: 2, name: x1 | x3 > 0.0, heter: 0.27 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 0 - Statistics per tree level:
Level 0, heter: 8.34
Level 1, heter: 0.58 || heter drop : 7.76 (units), 93.08% (pcg)

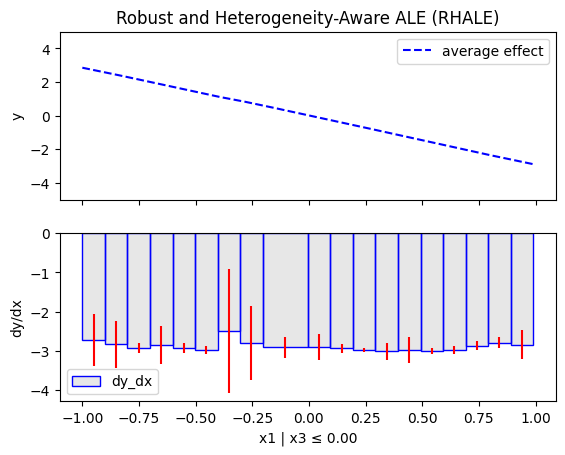

regional_rhale.plot(feature=0, node_idx=1, heterogeneity="std", centering=True, y_limits=[-5, 5])

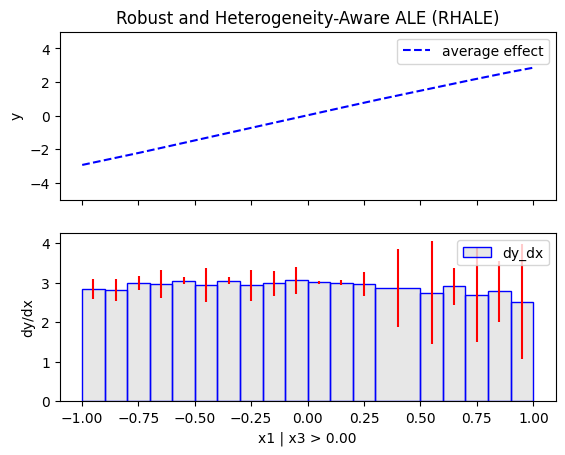

regional_rhale.plot(feature=0, node_idx=2, heterogeneity="std", centering=True, y_limits=[-5, 5])
regional_rhale.summary(features=1)
Feature 1 - Full partition tree:
Node id: 0, name: x2, heter: 0.02 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 1 - Statistics per tree level:
Level 0, heter: 0.02
regional_rhale.summary(features=2)
Feature 2 - Full partition tree:
Node id: 0, name: x3, heter: 48.54 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 2 - Statistics per tree level:
Level 0, heter: 48.54
Conclusion
Correlated setting
Global RHALE
rhale = effector.RHALE(data=X_cor_train, model=model_cor, model_jac=model_cor_jac, feature_names=['x1','x2','x3'], target_name="Y")
binning_method = effector.axis_partitioning.Fixed(10, min_points_per_bin=0)
rhale.fit(features="all", binning_method=binning_method, centering=True)
rhale.plot(feature=0, centering=True, heterogeneity="std", show_avg_output=False, y_limits=[-5, 5], dy_limits=[-5, 5])

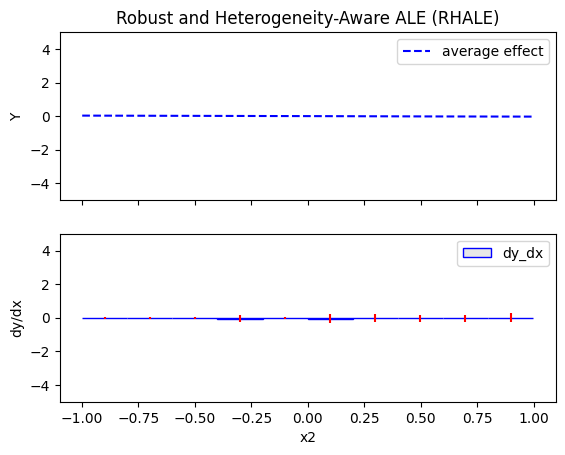

rhale.plot(feature=1, centering=True, heterogeneity="std", show_avg_output=False, y_limits=[-5, 5], dy_limits=[-5, 5])

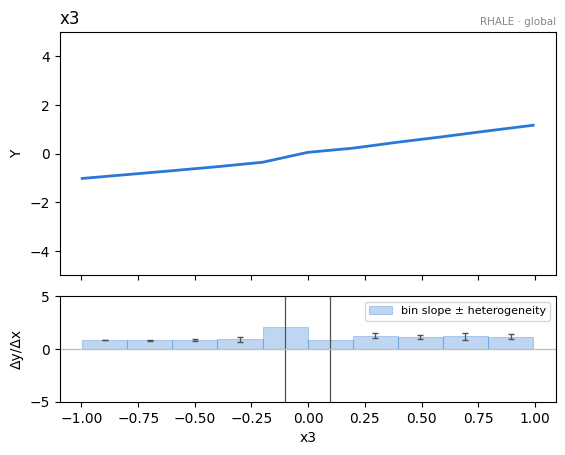

rhale.plot(feature=2, centering=True, heterogeneity="std", show_avg_output=False, y_limits=[-5, 5], dy_limits=[-5, 5])
Regional RHALE
regional_rhale = effector.RegionalRHALE(
data=X_cor_train,
model=model_cor,
model_jac=model_cor_jac,
feature_names=['x1', 'x2', 'x3'],
axis_limits=np.array([[-1, 1], [-1, 1], [-1, 1]]).T)
binning_method = effector.axis_partitioning.Fixed(11, min_points_per_bin=0)
space_partitioner = effector.space_partitioning.Best(heter_pcg_drop_thres=0.6, nof_candidate_splits_for_numerical=10)
regional_rhale.fit(
features="all",
space_partitioner=space_partitioner,
)
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3/3 [00:00<00:00, 16.77it/s]
regional_rhale.summary(features=0)
Feature 0 - Full partition tree:
Node id: 0, name: x1, heter: 2.33 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 0 - Statistics per tree level:
Level 0, heter: 2.33
regional_rhale.summary(features=1)
Feature 1 - Full partition tree:
Node id: 0, name: x2, heter: 0.01 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 1 - Statistics per tree level:
Level 0, heter: 0.01
regional_rhale.summary(features=2)
Feature 2 - Full partition tree:
Node id: 0, name: x3, heter: 15.84 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 2 - Statistics per tree level:
Level 0, heter: 15.84
Conclusion
SHAP DP
Uncorrelated setting
Global SHAP DP
shap = effector.ShapDP(data=X_uncor_train, model=model_uncor, feature_names=['x1', 'x2', 'x3'], target_name="Y")
binning_method = effector.axis_partitioning.Fixed(nof_bins=5, min_points_per_bin=0)
shap.fit(features="all", binning_method=binning_method, centering=True)

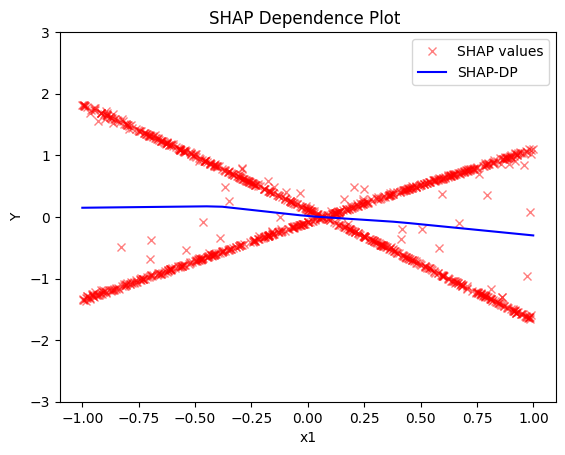

shap.plot(feature=0, centering=True, heterogeneity="shap_values", show_avg_output=False, y_limits=[-3, 3])

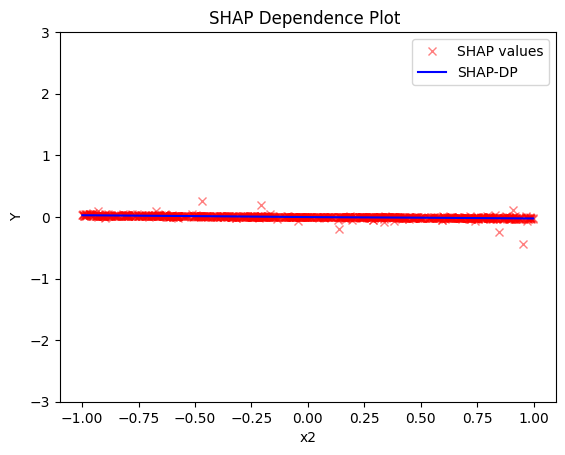

shap.plot(feature=1, centering=True, heterogeneity="shap_values", show_avg_output=False, y_limits=[-3, 3])

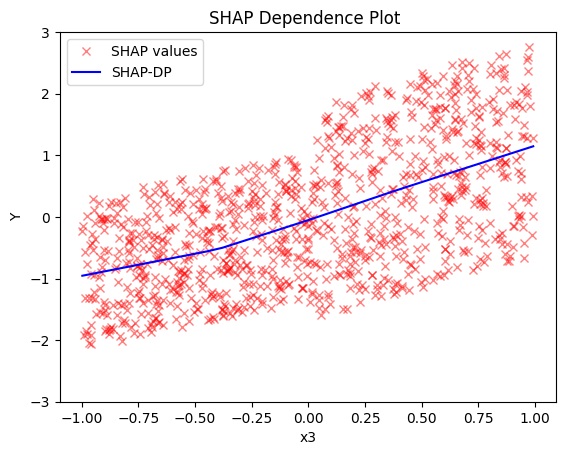

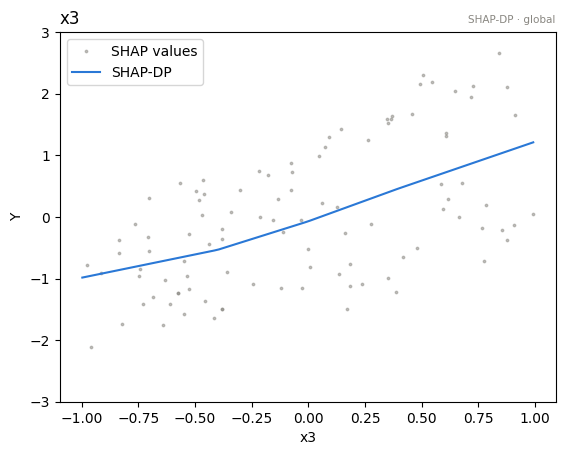

shap.plot(feature=2, centering=True, heterogeneity="shap_values", show_avg_output=False, y_limits=[-3, 3])
Regional SHAP-DP
regional_shap = effector.RegionalShapDP(
data=X_uncor_train,
model=model_uncor,
feature_names=['x1', 'x2', 'x3'],
axis_limits=np.array([[-1, 1], [-1, 1], [-1, 1]]).T)
space_partitioner = effector.space_partitioning.Best(heter_pcg_drop_thres=0.6, nof_candidate_splits_for_numerical=10)
regional_shap.fit(
features="all",
space_partitioner=space_partitioner,
binning_method=effector.axis_partitioning.Fixed(nof_bins=5, min_points_per_bin=0)
)
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3/3 [00:04<00:00, 1.45s/it]
regional_shap.summary(0)
Feature 0 - Full partition tree:
Node id: 0, name: x1, heter: 0.81 || nof_instances: 1000 || weight: 1.00
Node id: 1, name: x1 | x3 <= 0.0, heter: 0.04 || nof_instances: 1000 || weight: 1.00
Node id: 2, name: x1 | x3 > 0.0, heter: 0.03 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 0 - Statistics per tree level:
Level 0, heter: 0.81
Level 1, heter: 0.07 || heter drop : 0.74 (units), 91.25% (pcg)

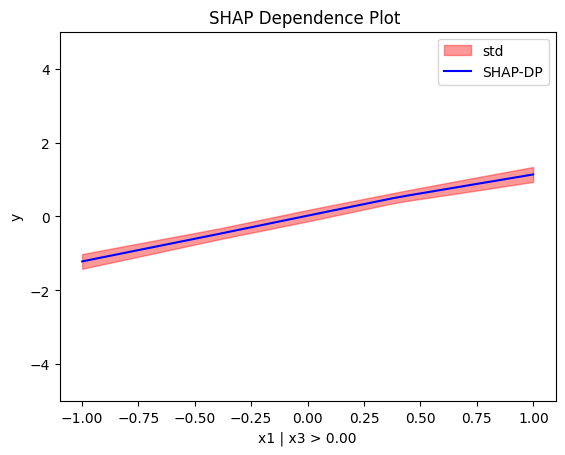

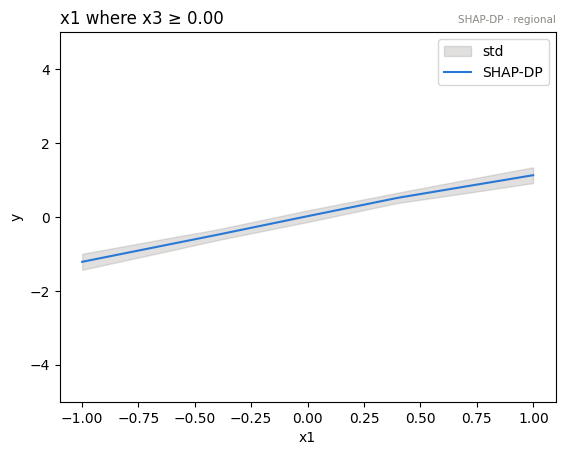

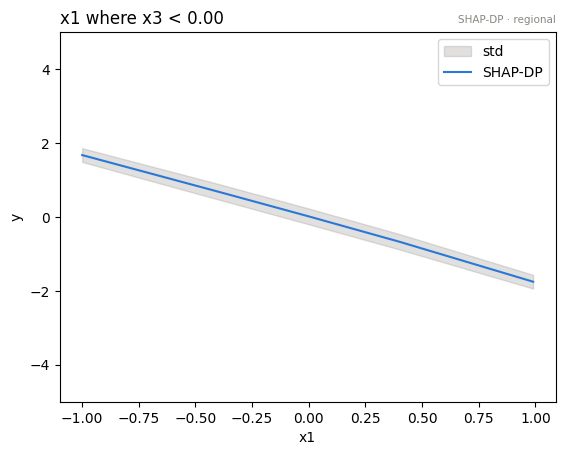

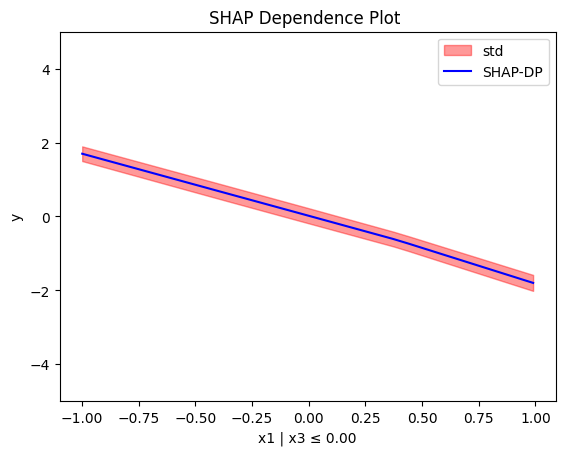

regional_shap.plot(feature=0, node_idx=1, heterogeneity="std", centering=True, y_limits=[-5, 5])
regional_shap.plot(feature=0, node_idx=2, heterogeneity="std", centering=True, y_limits=[-5, 5])
regional_shap.summary(features=1)
Feature 1 - Full partition tree:
Node id: 0, name: x2, heter: 0.00 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 1 - Statistics per tree level:
Level 0, heter: 0.00
regional_shap.summary(features=2)
Feature 2 - Full partition tree:
Node id: 0, name: x3, heter: 0.76 || nof_instances: 1000 || weight: 1.00
Node id: 1, name: x3 | x1 <= 0.0, heter: 0.25 || nof_instances: 1000 || weight: 1.00
Node id: 2, name: x3 | x1 > 0.0, heter: 0.33 || nof_instances: 1000 || weight: 1.00
--------------------------------------------------
Feature 2 - Statistics per tree level:
Level 0, heter: 0.76
Level 1, heter: 0.58 || heter drop : 0.17 (units), 22.98% (pcg)
Conclusion
Correlated setting
Global SHAP-DP
shap = effector.ShapDP(data=X_cor_train, model=model_cor, feature_names=['x1', 'x2', 'x3'], target_name="Y")
binning_method = effector.axis_partitioning.Fixed(nof_bins=5, min_points_per_bin=0)
shap.fit(features="all", binning_method=binning_method, centering=True)

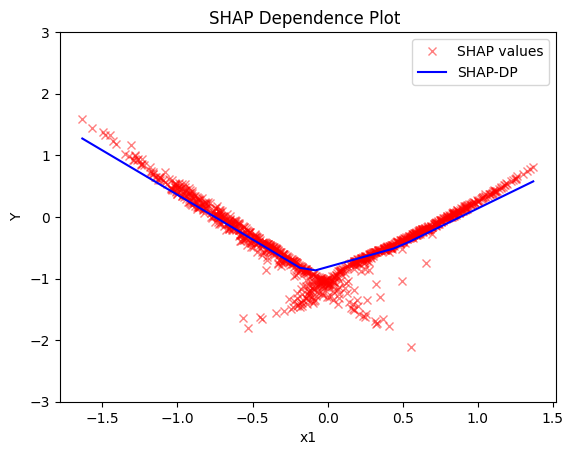

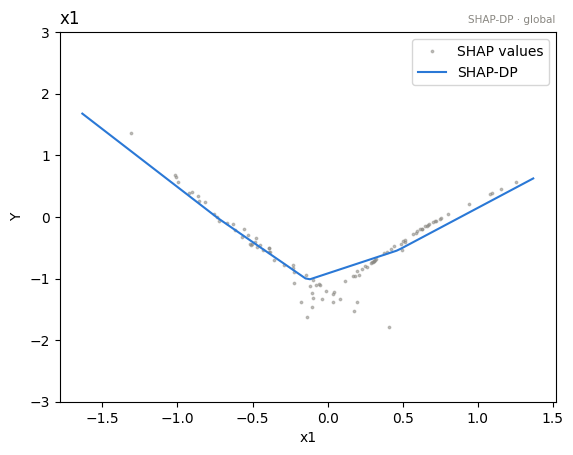

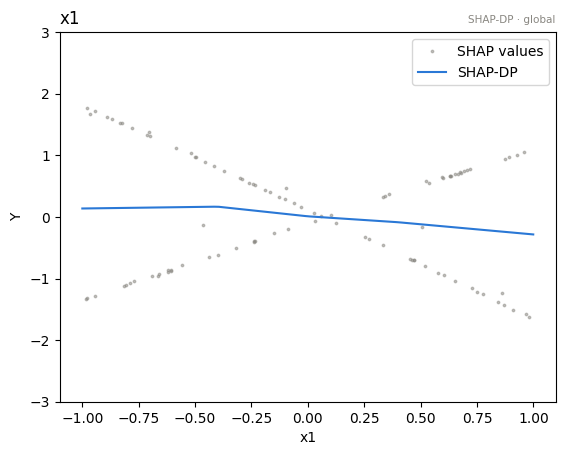

shap.plot(feature=0, centering=True, heterogeneity="shap_values", show_avg_output=False, y_limits=[-3, 3])

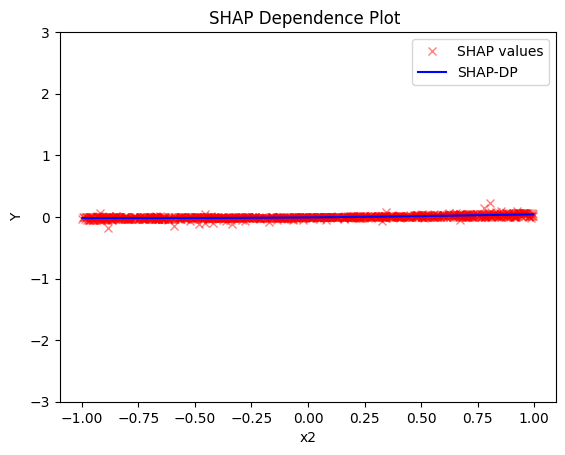

shap.plot(feature=1, centering=True, heterogeneity="shap_values", show_avg_output=False, y_limits=[-3, 3])

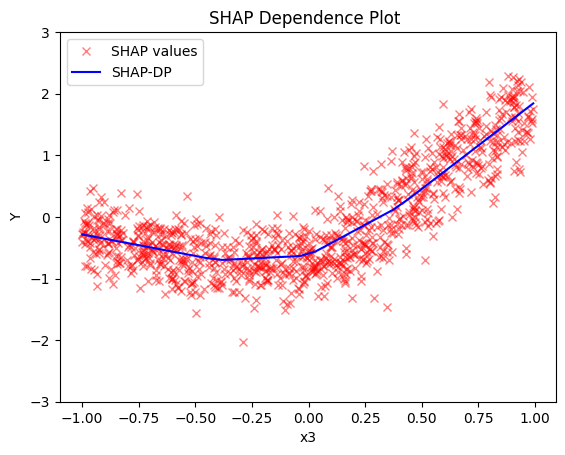

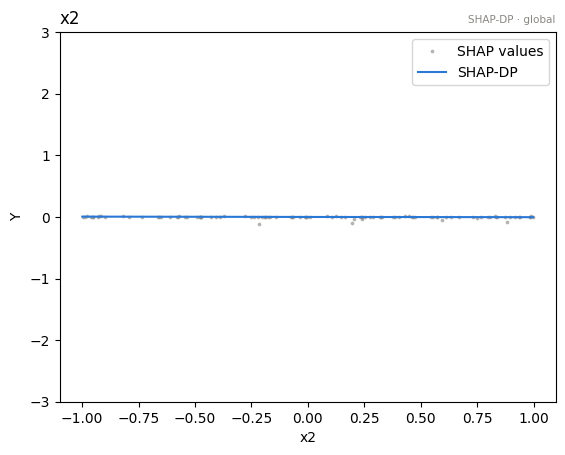

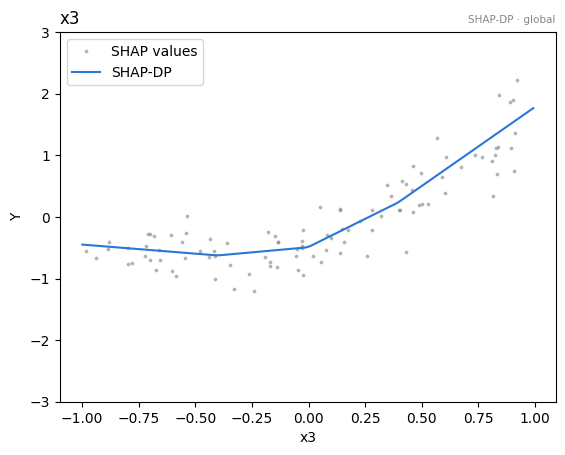

shap.plot(feature=2, centering=True, heterogeneity="shap_values", show_avg_output=False, y_limits=[-3, 3])
Regional SHAP
regional_shap = effector.RegionalShapDP(
data=X_cor_train,
model=model_cor,
feature_names=['x1', 'x2', 'x3'],
axis_limits=np.array([[-1, 1], [-1, 1], [-1, 1]]).T)
space_partitioner = effector.space_partitioning.Best(heter_pcg_drop_thres=0.6, nof_candidate_splits_for_numerical=10)
regional_shap.fit(
features="all",
space_partitioner=space_partitioner,
binning_method=effector.axis_partitioning.Fixed(nof_bins=5, min_points_per_bin=0)
)
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3/3 [00:04<00:00, 1.38s/it]
regional_shap.summary(0)
regional_shap.summary(1)
regional_shap.summary(2)
Feature 0 - Full partition tree:
Node id: 0, name: x1, heter: 0.07 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 0 - Statistics per tree level:
Level 0, heter: 0.07
Feature 1 - Full partition tree:
Node id: 0, name: x2, heter: 0.00 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 1 - Statistics per tree level:
Level 0, heter: 0.00
Feature 2 - Full partition tree:
Node id: 0, name: x3, heter: 0.09 || nof_instances: 900 || weight: 1.00
--------------------------------------------------
Feature 2 - Statistics per tree level:
Level 0, heter: 0.09
