Model with conditional interaction
- Author: givasile
- Runtime: ~5 s
- Description: Regional effects (PDP, ALE, RHALE) on a model with a
conditional interaction: every method must find the split on \(x_2\) at 0 and
recover the per-region closed forms, tested against
effector.benchmarks. - π The whole notebook in one page: PDP report
In this example, we show regional effects of a model with conditional interactions using PDP, ALE, and RHALE. In particular, we:
- show how to use
effectorto estimate the regional effects using PDP, ALE, and RHALE - provide the analytical formulas for the regional effects
- test that (1) and (2) match
We will use the following model:
\[
f(x_1, x_2, x_3) = -x_1^2 \mathbb{1}_{x_2 <0} + x_1^2 \mathbb{1}_{x_2 \geq 0} + e^{x_3}
\]
where the features \(x_1, x_2, x_3\) are independent and uniformly distributed in the interval \([-1, 1]\).
The model has an interaction between \(x_1\) and \(x_2\) caused by the terms: \(f_{1,2}(x_1, x_2) = -x_1^2 \mathbb{1}_{x_2 <0} + x_1^2 \mathbb{1}_{x_2 \geq 0}\). This means that the effect of \(x_1\) on the output \(y\) depends on the value of \(x_2\) and vice versa. Therefore, there is no golden standard on how to split the effect of \(f_{1,2}\) to two parts, one that corresponds to \(x_1\) and one to \(x_2\). Each global effect method has a different strategy to handle this issue. Below we will see how PDP, ALE, and RHALE handle this interaction.
In contrast, \(x_3\) does not interact with any other feature, so its effect can be easily computed as \(e^{x_3}\).
import numpy as np
import matplotlib.pyplot as plt
import effector
np.random.seed(21)
bench = effector.benchmarks.ConditionalInteractionUniform()
model = bench.model
dataset = bench.dataset
x = bench.generate_data(1_000)
Why regional effects?
As shown in the global-effects notebook, the global effect of \(x_1\) is zero with high heterogeneity: for instances with \(x_2 < 0\) the local effect is \(-x_1^2\) and for \(x_2 \geq 0\) it is \(+x_1^2\), so the average washes out.
Regional effect methods ask the natural follow-up: is there a split of the input space that makes the local effects agree within each subregion? Here the answer is known by construction β splitting on \(x_2 = 0\) yields two regions where the effect of \(x_1\) is deterministic:
\[
\text{effect}(x_1 \mid x_2 < 0) = -x_1^2, \qquad
\text{effect}(x_1 \mid x_2 \geq 0) = +x_1^2,
\]
each with zero heterogeneity. After zero-integral centering over \(x_1 \in [-1, 1]\) (the mean of \(x_1^2\) is \(1/3\)), the closed forms are \(\mp x_1^2 \pm 1/3\). Every regional method below must recover: the split feature (\(x_2\)), the split position (\(\approx 0\)), and the per-region curves.
New-API: importance and one-click explain
Before drilling into the regional splits, the new API offers two shortcuts on
top of the global effect. importances() ranks features by the dispersion of
their mean effect (the ΞΌ-twin of heterogeneity): here \(x_3\) (the monotone
\(e^{x_3}\)) carries a large mean effect, while \(x_1\)'s mean effect washes out to
\(\approx 0\) (its signal lives entirely in the heterogeneity that the regional
split below explains). effector.explain(...) runs the whole pipeline once and
returns a serializable Report.
# per-feature importance = dispersion of the mean effect (mu-twin of heterogeneity)
fx = effector.PDP(
data=x, model=model.predict,
axis_limits=dataset.axis_limits,
nof_instances="all",
)
print("importances:", np.round(fx.importances(), 3))
# one-click auto-explanation -> Report (serializable; self-contained HTML)
report = effector.explain(x, model.predict, method="pdp", nof_instances="all")
report.show()
# the whole notebook, in one page: the report published with this example
from pathlib import Path
_out = Path("reports") / "05_conditional_interaction_independent_uniform_regional"
_out.mkdir(parents=True, exist_ok=True)
report.to_html(_out / "report_pdp.html")
importances: [0.007 0.326 0.668]
[effector] global effects (GAM) -> 86.7% of the model's variance
regional effects (CALM) -> 99.8%
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
PDP report Β· target: y
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
DATA & MODEL
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
instances 1,000
features 3 Β· 3 continuous
model output mean 1.17 Β· std 0.803 Β· range [-0.546, 3.38]
EXPLAINED VARIANCE
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
step split on solo ΞRΒ² RΒ² heter
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
GAM (all features global) β β 86.7% β
+ x_0 x_1 +13.1% +13.1% 99.8% 0.29 β 0.00
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
FINAL 99.8%
REJECTED SPLITS min gain 1.0%
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
feature split on solo ΞRΒ² reason
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
β x_1 x_0 +10.3% -10.2% redundant
β redundant: it would explain variance on its own (see solo),
but the accepted splits already account for it.
FEATURES ranked, in the selected snapshot
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
feature importance heter #regions
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
x_2 0.6679 ββββββββββββββββββ 0.0000 1
x_1 0.3261 βββββββββ 0.2919 1
x_0 0.2917 ββββββββ 0.0000 2
ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ
the features above carry 100% of the total importance mass
Feature 0 - Full partition tree:
π³ Full Tree Structure:
βββββββββββββββββββββββ
x_0 πΉ [id: 0 | heter: 0.29 | inst: 1000 | w: 1.00]
x_1 < 0.00 πΉ [id: 1 | heter: 0.00 | inst: 488 | w: 0.49]
x_1 β₯ 0.00 πΉ [id: 2 | heter: 0.00 | inst: 512 | w: 0.51]
--------------------------------------------------
Feature 0 - Statistics per tree level:
π³ Tree Summary:
βββββββββββββββββ
Level 0πΉheter: 0.29
Level 1πΉheter: 0.00 | π»0.29 (100.00%)
/home/givasile/github/packages/effector/effector/report.py:606: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
fig.tight_layout()
Regional PDP
Effector
pdp = effector.PDP(
data=x, model=model.predict,
axis_limits=dataset.axis_limits,
nof_instances="all",
)
pdp.fit("all", centering=True)
finder = effector.space_partitioning.Best()
partitions_pdp = {feat: pdp.find_regions(feat, finder=finder) for feat in range(3)}
partitions_pdp[0].show()
Feature 0 - Full partition tree:
π³ Full Tree Structure:
βββββββββββββββββββββββ
x_0 πΉ [id: 0 | heter: 0.29 | inst: 1000 | w: 1.00]
x_1 < 0.00 πΉ [id: 1 | heter: 0.00 | inst: 488 | w: 0.49]
x_1 β₯ 0.00 πΉ [id: 2 | heter: 0.00 | inst: 512 | w: 0.51]
--------------------------------------------------
Feature 0 - Statistics per tree level:
π³ Tree Summary:
βββββββββββββββββ
Level 0πΉheter: 0.29
Level 1πΉheter: 0.00 | π»0.29 (100.00%)

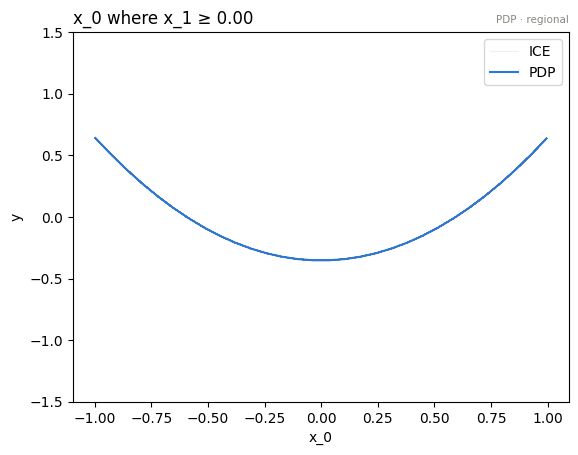

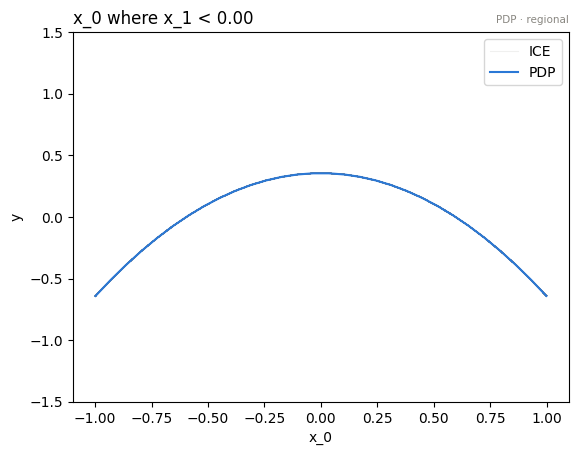

for region_idx in [1, 2]:
partitions_pdp[0].plot(region_idx, heterogeneity="ice", centering=True, y_limits=[-1.5, 1.5])
Tests
# the same closed forms the test suite asserts against
# (tests/test_functional_conditional_interaction.py::TestRegionalEffects)
xx = np.linspace(-1, 1, 100)
def check_regions(partition):
children = [r for r in partition if r.level == 1]
assert len(children) == 2
for r in children:
# the split must be on x2 at ~0 (the region's Rule is its identity)
assert r.rule.features == (bench.regional_split_feature,)
interval = r.rule[bench.regional_split_feature]
pos = interval.hi if np.isfinite(interval.hi) else interval.lo
assert abs(pos - bench.regional_split_position) <= 0.15
# inside each region: -+x1^2 (centered), with ~zero heterogeneity;
# x < t (upper-bounded interval) is the left child, x >= t the right
side = "left" if not np.isfinite(interval.lo) else "right"
y = partition.eval(r.idx, xx, centering=True)
heter = partition.eval_heter(r.idx, xx)
np.testing.assert_allclose(y, bench.regional_effect_gt(side, xx), atol=1e-1)
np.testing.assert_allclose(heter, np.zeros_like(xx), atol=1e-1)
check_regions(partitions_pdp[0])
Regional ALE
Effector
ale = effector.ALE(
data=x, model=model.predict,
axis_limits=dataset.axis_limits,
nof_instances="all",
)
ale.fit("all", centering=True)
finder = effector.space_partitioning.Best()
partitions_ale = {feat: ale.find_regions(feat, finder=finder) for feat in range(3)}
partitions_ale[0].show()
Feature 0 - Full partition tree:
π³ Full Tree Structure:
βββββββββββββββββββββββ
x_0 πΉ [id: 0 | heter: 0.66 | inst: 1000 | w: 1.00]
x_1 < 0.00 πΉ [id: 1 | heter: 0.00 | inst: 488 | w: 0.49]
x_1 β₯ 0.00 πΉ [id: 2 | heter: 0.00 | inst: 512 | w: 0.51]
--------------------------------------------------
Feature 0 - Statistics per tree level:
π³ Tree Summary:
βββββββββββββββββ
Level 0πΉheter: 0.66
Level 1πΉheter: 0.00 | π»0.66 (100.00%)

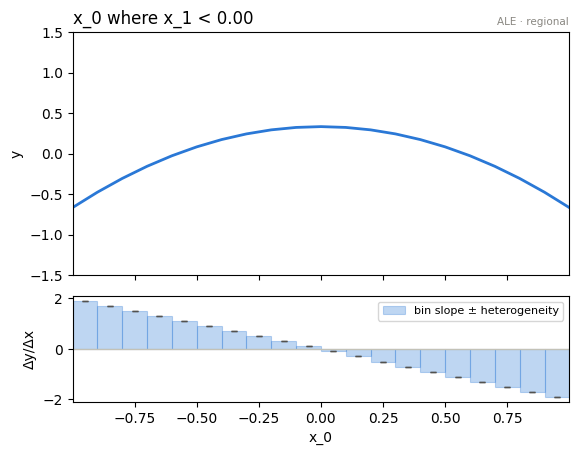

for region_idx in [1, 2]:
partitions_ale[0].plot(region_idx, centering=True, y_limits=[-1.5, 1.5])
Tests
check_regions(partitions_ale[0])
Regional RHALE
Effector
rhale = effector.RHALE(
data=x, model=model.predict, model_jac=model.jacobian,
axis_limits=dataset.axis_limits,
nof_instances="all",
)
rhale.fit("all", centering=True)
finder = effector.space_partitioning.Best()
partitions_rhale = {feat: rhale.find_regions(feat, finder=finder) for feat in range(3)}
partitions_rhale[0].show()
Feature 0 - Full partition tree:
π³ Full Tree Structure:
βββββββββββββββββββββββ
x_0 πΉ [id: 0 | heter: 0.66 | inst: 1000 | w: 1.00]
x_1 < 0.00 πΉ [id: 1 | heter: 0.03 | inst: 488 | w: 0.49]
x_1 β₯ 0.00 πΉ [id: 2 | heter: 0.03 | inst: 512 | w: 0.51]
--------------------------------------------------
Feature 0 - Statistics per tree level:
π³ Tree Summary:
βββββββββββββββββ
Level 0πΉheter: 0.66
Level 1πΉheter: 0.03 | π»0.63 (95.01%)

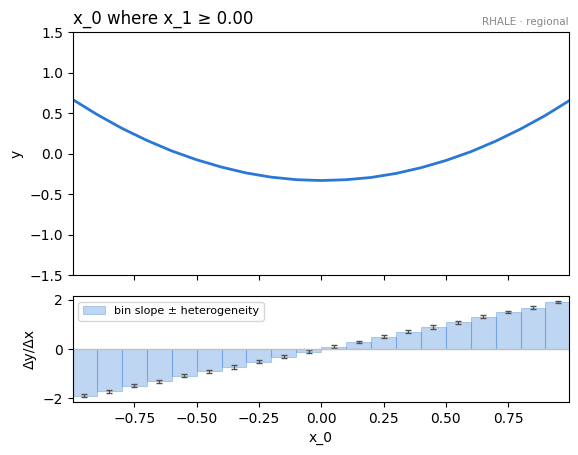

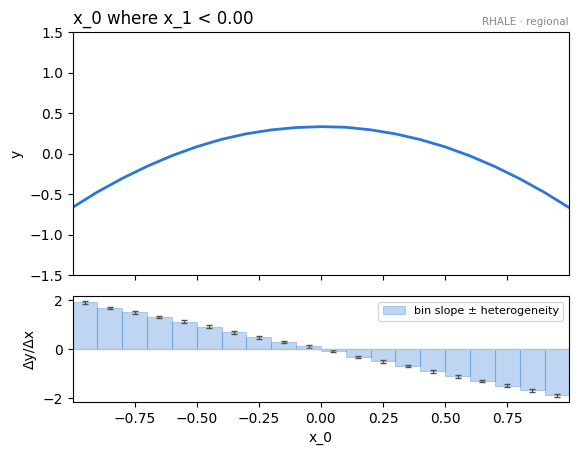

for region_idx in [1, 2]:
partitions_rhale[0].plot(region_idx, centering=True, y_limits=[-1.5, 1.5])
Tests
check_regions(partitions_rhale[0])
Conclusions
All three regional methods recover the ground truth: they split on \(x_2\) at \(\approx 0\) and, inside each region, report the deterministic effect \(\mp x_1^2\) (centered) with heterogeneity dropping from \(\sim 0.1\) at the root to \(\approx 0\) β the model's conditional interaction is fully explained by a single split. This is the ideal-case benchmark for regional methods: when a crisp subspace structure exists, the methods must find exactly it.
Cross-method sanity check
The one-liner effector.explain with every engine this notebook's model
supports. Everything must run end to end; the closing table puts the reads
side by side. Where methods disagree β ranking, accepted splits, RΒ² β that is
a property of the data/model worth a closer look, not an error.
from pathlib import Path
_out = Path("reports") / "05_conditional_interaction_independent_uniform_regional"
_out.mkdir(parents=True, exist_ok=True)
# === cross-method sweep: effector.explain on every applicable engine ======
sweep_reports = {}
for _m in ["pdp", "derpdp", "ale", "rhale", "shapdp"]:
_kw = {"nof_instances": 300} if _m == "shapdp" else {}
print(f"--- {_m} " + "-" * 50)
sweep_reports[_m] = effector.explain(
x, model.predict, model.jacobian, method=_m, **_kw
)
if _m != "pdp": # the published report is the narrated one above
sweep_reports[_m].to_html(_out / f"report_{_m}.html")
print()
print(f"{'method':<8} {'ranking (plotted)':<44} {'GAM R2':>8} {'final R2':>9} splits")
for _m, _r in sweep_reports.items():
_rank = " > ".join(fr.name for fr in _r.features)
_ev = _r.explained_variance
if _ev:
_sp = "; ".join(f"{s['name']} on {s['on']}" for s in _ev["stages"]) or "none"
print(f"{_m:<8} {_rank:<44} {_ev['gam_r2']:>7.1%} {_ev['regional_r2']:>8.1%} {_sp}")
else:
print(f"{_m:<8} {_rank:<44} {'-':>7} {'-':>8} (derivative scale: no variance ledger)")
print(f"\nreports stored in {_out}/")
--- pdp --------------------------------------------------
[effector] global effects (GAM) -> 86.7% of the model's variance
regional effects (CALM) -> 99.8%
--- derpdp --------------------------------------------------
/home/givasile/github/packages/effector/effector/report.py:606: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
fig.tight_layout()
--- ale --------------------------------------------------
[effector] global effects (GAM) -> 85.3% of the model's variance
regional effects (CALM) -> 98.8%
/home/givasile/github/packages/effector/effector/report.py:606: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
fig.tight_layout()
--- rhale --------------------------------------------------
[effector] global effects (GAM) -> 70.0% of the model's variance
regional effects (CALM) -> 100.0%
/home/givasile/github/packages/effector/effector/report.py:606: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
fig.tight_layout()
--- shapdp --------------------------------------------------
[effector] global effects (GAM) -> 87.3% of the model's variance
regional effects (CALM) -> 96.6%
/home/givasile/github/packages/effector/effector/report.py:606: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
fig.tight_layout()
method ranking (plotted) GAM R2 final R2 splits
pdp x_2 > x_1 > x_0 86.7% 99.8% x_0 on x_1
derpdp x_2 - - (derivative scale: no variance ledger)
ale x_2 > x_1 > x_0 85.3% 98.8% x_0 on x_1
rhale x_2 > x_0 70.0% 100.0% x_0 on x_1
shapdp x_2 > x_1 > x_0 87.3% 96.6% x_0 on x_1
